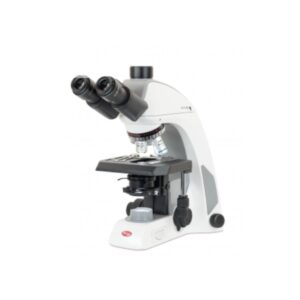

Motic Panthera C2 Trinocular

Magnification Range

2X to 100X (4X, 10X, 40X, 100X standard)

Numerical Aperture (NA)

4X/0.10, 10X/0.25, 40X/0.65/S, 100X/1.25/S-Oil; Condenser NA 0.90/1.25

Resolution

Not specified; Fine focus 2μm precision; Very good image flattening & chromatic correction

Field of View (FOV)

20mm, 22mm with UC objectives and eyepieces

Depth of Field

Not specified

Contrast Methods

Brightfield, Phase Contrast, Polarization, Darkfield, LED Fluorescence

Optical System Type

Colour Corrected Infinity Optical System (CCIS®)

Motorized Components

Not specified

Automated Imaging Sequences

Not specified

Software for Image Analysis

Motic Images Plus 3.0 included

Remote Operation Capability

Possible via MotiConnect App and MoticNet software (viewing, sharing)

Data Export Formats

Not specified

Integration with Laboratory Information Systems (LIS)

Not specified

Ergonomic Design

Siedentopf head, 25º incline, 360º swivel; Interpupillary 48-75mm; low position rackless stage controls

Modular Expandability

Modular system; optional PH, Polarization, DF, Fluorescence modules; universal turret condenser

Maintenance Requirements

Not specified

Power Supply Specifications

110-240V CE; internal transformer; USB 2.0 external camera power

Product Series

Panthera Series; model Panthera C2 Trinocular

Technical Support Availability

Support via website; offices in Canada, Germany, Hong Kong, Spain; warranty registration
