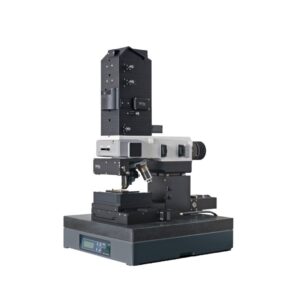

WITec alpha300 RA

Magnification Range

6x objective turret; specific range not specified

Numerical Aperture (NA)

Not specified

Resolution

Lateral: ~200 nm (diffraction-limited), ~60 nm (SNOM, TERS); Spectral: 0.1 cm⁻¹; Depth: suited for 3D profiling

Field of View (FOV)

Not explicitly stated; scan areas e.g., 100×100×10 µm³

Depth of Field

Shallow; inferred from confocal setup

Contrast Methods

Raman, Bright Field, Dark Field, DIC, Phase Contrast, Fluorescence, AFM, SNOM, SEM

Optical System Type

Confocal Raman Microscope; upright/inverted options available

Motorized Components

Motorized turret, stages, grating turret; alpha300 apyron is fully motorized

Automated Imaging Sequences

Available; includes multi-point imaging, cantilever approach, light intensity control

Software for Image Analysis

WITec Suite SIX; Project SIX+; TrueMatch™; ParticleScout

Remote Operation Capability

LabVIEW interface (alphaControl); remote procedure design/control

Data Export Formats

Not specified

Integration with Laboratory Information Systems (LIS)

Not specified

Ergonomic Design

User-friendly, intuitive software, push-button operation; ergonomic term not used

Modular Expandability

Modular, upgradable, configurable; accessory & function add-on support

Maintenance Requirements

Minimal; pre-aligned fiber units for long-term stability

Power Supply Specifications

Not specified

Product Series

WITec alpha300 series (R, S, A, RA, RS, Ri, apyron, access); RISE™; UHTS Spectrometers

Technical Support Availability

Global support by WITec (Oxford Instruments Group)
