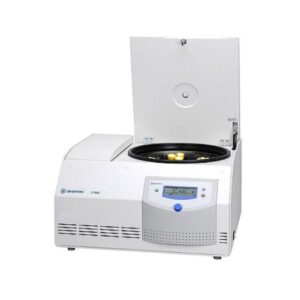

Sigma Laborzentrifugen GmbH Sigma 2-16KHL
Sign in to view price
$FNVXPERFORMANCE
Maximum Speed (RPM)
Up to 15,300 rpm (varies by rotor, e.g., 14,000 rpm for rotor 12132, 4,000 rpm for rotor 12071)
Maximum Relative Centrifugal Force (RCF)
21,913 x g (fixed-angle rotor 12132 at 14,000 rpm)
Acceleration/Deceleration Time
10 selectable curves; max accel: 31 s (rotor 12141), max brake: 37 s (rotor 12141)
Temperature Control Range
–10°C to +60°C, adjustable in 1°C increments
Noise Level
≤ 53 dB(A) (fixed-angle rotor 12141); ≤ 52 dB(A) (swing-out rotor 11170)
Imbalance Detection
Automatic imbalance monitoring included
Run Time Range
10 s to 99 h 59 min, increments of 1 s, short & continuous run options
K-Factor (Clearing Factor)
Not specified
OPERATIONAL FEATURES
Footprint Dimensions
310 mm (H) x 550 mm (W) x 570 mm (D); height open lid 705 mm
Weight
60 kg (without rotor)
Power Requirements
720 W; 220–240 V, 50/60 Hz; inert gas option available
Cooling System Type (e.g., Air, Refrigerated)
Refrigerated and heated; refrigerant R513a (0.255 kg), 23 bar pressure
Energy Consumption
720 W
Maintenance Requirements
Maintenance, calibration, service contracts available; greasing rotor bolts not needed anymore
GENERAL INFORMATION
Product Series
Sigma 2-16 series, model Sigma 2-16KHL
Warranty Period
Not specified
