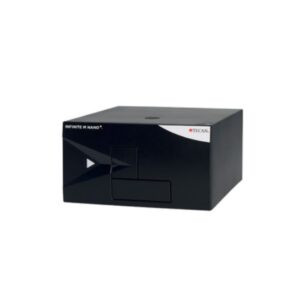

Tecan Infinite® M Nano, single-mode microplate reader, monochromator optics
Sign in to view price
$4NM6FPERFORMANCE
Reading Accuracy
260/280 ratio ±0.07; Precision @260 nm: <0.2%; Accuracy @260 nm: <0.5%
Absorbance Range
0 – 4 OD
Sensitivity
Top Fluor: 85/170 amol (F/M); Bottom Fluor: 5.0/9.0 fmol (F/M); TRF: 2.8/90 amol (F/M); FP: <4 mP SD @ 1 nM; Glow: 225 amol; Flash: 12 amol
Measurement Speed
96-well: 20 sec; 384-well: 30 sec; Wavelength scan (450–550 nm): 150 sec
Dynamic Range
Large (no specific value)
MASS RANGE AND ANALYTE DETECTION
Wavelength Range
230–1000 nm
Wavelength Selection
M: Quad4 Monochromators; F: Filters (up to 4/filter slide); 1 nm increment for Abs scan
Measurement Technology
Monochromator & filter-based (Quad4 for M; filters for F)
IONIZATION, SOURCE AND INTERFACE
Detector
Fluor: PMT; Abs: UV silicon photodiode; Lumi: photon counting PMT
Optical System
3 optics sets; Fiber-free (F), Quad4 Monochromator (M); bottom fiber for cell assays; 510 nm dichroic (F); Lumi fiber for 384-well
Light Source
UV Xenon flashlamp
Excitation and Emission Filters
F config: up to 4 pairs/slide; Lumi filter wheel: 4 color filters
MASS ANALYZER
Autofocus
Automated z-focus (fluorescence top); z-focusing in software
Plate Shaking
Linear, orbital
CHROMATOGRAPHY AND SAMPLE HANDLING
Microplate Formats
6- to 384-well plates, PCR plates, cuvettes, NanoQuant Plate
Reagent Injector System
Optional 1–2 injectors; 1 ml syringe; 1 µl steps; 800 µl max/stroke; 100 µl dead volume
Plate Reader Mode
6 configurations: M Nano, M Nano+, M Plex, Lumi, F Nano+, F Plex
DATA ACQUISITION AND ANALYSIS
Data Acquisition
Export to Excel/Windows formats
Data Analysis
i-control: basic workflows; Magellan (opt): advanced analytics, ICx, spectra, kinetic, 21 CFR Part 11 compliant
AUTOMATION AND SOFTWARE
Automation
Pathlength correction; Auto z-focus
Software
i-control (included); Magellan (optional)
OPERATIONAL FEATURES
Ease of Use
Modular, intuitive software; drag-and-drop workflows; easy calibration-free NanoQuant Plate
Maintenance and Durability
MultiCheck QC package available; other details not specified
Operating Conditions
Temp: Ambient +5 °C to 42 °C
Power and Cooling
Power cord included; cooling not specified
Dimensions and Footprint
Not specified
GENERAL INFORMATION
Brand and Model
Tecan, Infinite® M Nano, single-mode microplate reader, monochromator optics
Documentation and Support
User manual provided; Contact Tecan for details
Compatibility and Connectivity
Exports to Excel/Windows; ANSI/SLAS plate formats
Configuration and Options
6 modes; Upgrade path available; Optional: injectors, cuvette port, NanoQuant, filters, microplates, Magellan software, QC package
Licensing and Certification
Validated for HTRF, DLR, Red FI/TR-FRET; Magellan Tracker: 21 CFR Part 11 compliant
Cost and Operational Expenses
Affordable; F Nano+ noted as cost-effective; High-density plates save reagents; filter-based = budget friendly
