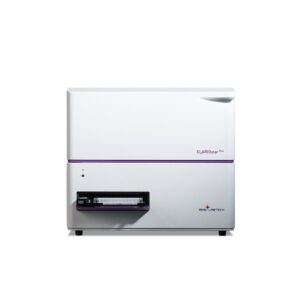

BMG Labtech CLARIOstar Plus
Sign in to view price
$0P4OJPERFORMANCE
Reading Accuracy
Accuracy: <1% @2OD; Precision: <0.5% @1OD, <0.8% @2OD; Linearity: ≤0.8% @2OD
Absorbance Range
0–4 OD; 220–1000 nm
Sensitivity
FI (top): <0.15 pM; FI (bottom): <1.0 pM; FI Mono (top): <0.35 pM; FI Mono (bottom): <3.0 pM; FP: 880% (Hi), >30% (Lo); TRF: <20 fM; Luminescence: <0.4 pM; AlphaScreen: <5 pM
Measurement Speed
100 measurements/sec; Full spectrum <1 sec/well; Read time (1 flash): 8–28s; (10 flashes): 19s–3m4s
Dynamic Range
8 decades in one measurement; EDR tech, no manual gain
MASS RANGE AND ANALYTE DETECTION
Wavelength Range
Filters: 240–740/900 nm; LVF Mono: 320–740/840 nm; Spectrometer: 220–1000 nm
Wavelength Selection
LVF Mono, filters, spectrometer; Dual LVF; 4 filters/slide; Spectral scanning; Up to 8 λs simultaneously
Measurement Technology
LVF Mono, filters, UV/vis spectrometer, EDR, Auto-focus, Alpha Tech
IONIZATION, SOURCE AND INTERFACE
Detector
Low-noise PMT, red-shifted PMT, CCD spectrometer
Optical System
Top/bottom reading, free-air optical path, motor-driven mirrors, dichroics
Light Source
Xenon flash lamp, dedicated 680 nm laser (AlphaTech)
Excitation and Emission Filters
4 filters per slide; optional accessory
MASS ANALYZER
Autofocus
Auto focus, Z-height adj. (0.1 mm), full-plate focus
Plate Shaking
Linear, orbital, double-orbital; intensity/duration/direction adjustable
CHROMATOGRAPHY AND SAMPLE HANDLING
Microplate Formats
6–1536 well; LVis Plate (2 µL); cuvette (1 mL)
Reagent Injector System
Up to 2 injectors; 3–500 µL (opt. 2 mL); 420 µL/s max; back flush
Plate Reader Mode
Abs, FI (FRET), Lum (BRET), FP, TRF, TR-FRET, AlphaScreen, Nephelometry
DATA ACQUISITION AND ANALYSIS
Data Acquisition
100/s sampling; SMART Control & Voyager
Data Analysis
MARS software; 21 CFR Part 11 compliant
AUTOMATION AND SOFTWARE
Automation
Robot-compatible; ActiveX/DDE; ASCII output; Stacker (50 plates, SMART only)
Software
SMART Control, Voyager (430-4001+), MARS; Fluorophore library
OPERATIONAL FEATURES
Ease of Use
User-friendly; intuitive interface; no manual gain; auto-focus
Maintenance and Durability
Not specified
Operating Conditions
Temp: Ambient +3 °C to 45/65 °C; ACU (0.1–20% O2/CO2); Gas vent
Power and Cooling
100–230 V; 50/60 Hz; 50 W (normal); 300 VA max; Cooling: Not specified
Dimensions and Footprint
45×51×40 cm; 32 kg; small footprint
GENERAL INFORMATION
Brand and Model
BMG LABTECH, CLARIOstar Plus
Documentation and Support
App notes, webinars, blog, support/manual requests, legacy support
Compatibility and Connectivity
Automation-ready; ActiveX/DDE; ASCII; Voyager/SMART compatibility
Configuration and Options
Modular upgrades; optional ACU, filters, laser, stacker, QC standards
Licensing and Certification
FDA 21 CFR Part 11 (SMART & MARS); others not specified
Cost and Operational Expenses
Not specified
