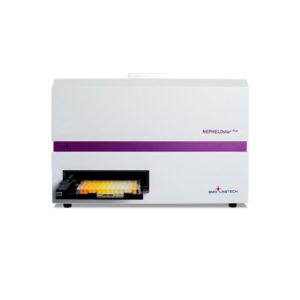

BMG Labtech NEPHELOstar Plus
Sign in to view price
$Y0A7IUPERFORMANCE
Reading Accuracy
Not specified
Absorbance Range
Not applicable (Nephelometry only)
Sensitivity
Up to 30x higher than OD readers; 800 nM for silica (0.5–10 µm)
Measurement Speed
16 sec (96-well), 47 sec (384-well)
Dynamic Range
5 decades
MASS RANGE AND ANALYTE DETECTION
Wavelength Range
635 ± 10 nm
Wavelength Selection
Photodiode at 635 ± 10 nm
Measurement Technology
Laser-based nephelometry, forward scattering
IONIZATION, SOURCE AND INTERFACE
Detector
Side window photodiode
Optical System
Adjustable laser intensity (0–100%), beam width (1.5–3.5 mm), 80° cone
Light Source
1 mW self-monitoring laser diode, 20,000 hr life, <0.2% stability deviation
Excitation and Emission Filters
Not specified
MASS ANALYZER
Autofocus
Not specified
Plate Shaking
Linear, orbital, double-orbital; user-defined time, speed, direction
CHROMATOGRAPHY AND SAMPLE HANDLING
Microplate Formats
6 to 384-well compatible
Reagent Injector System
2 injectors max, 3–500 µL/well, up to 420 µL/s, up to 4 injections/well
Plate Reader Mode
Endpoint, Kinetic
DATA ACQUISITION AND ANALYSIS
Data Acquisition
ASCII output
Data Analysis
MARS Software
AUTOMATION AND SOFTWARE
Automation
Stackers, robotic interface, ActiveX/DDE, automation-friendly
Software
Multi-user, FDA 21 CFR Part 11 compliant
OPERATIONAL FEATURES
Ease of Use
Not specified (user rated highly)
Maintenance and Durability
20,000 hr light source, support contracts available
Operating Conditions
4 °C above ambient to 45/60 °C; purge gas vent; ACU optional
Power and Cooling
100–240 V, 15 W (normal), 50 W (at 37 °C), no cooling system specified
Dimensions and Footprint
44 × 48 × 32 cm; 25 kg; small footprint
GENERAL INFORMATION
Brand and Model
BMG LABTECH, NEPHELOstar Plus
Documentation and Support
Application notes, videos, webinars, support, manuals, service contracts
Compatibility and Connectivity
Robotic integration, ActiveX/DDE, ASCII/LIMS compatible
Configuration and Options
Incubation, injectors, ACU, THERMOstar, Stacker
Licensing and Certification
FDA 21 CFR Part 11 compliant software
Cost and Operational Expenses
Not specified
