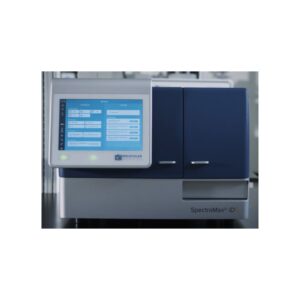

Moleculer Devices SpectraMax iD5 Multi-Mode Microplate Readers
Sign in to view price
$K6VRSPERFORMANCE
Reading Accuracy
< ±0.010 OD ±1.0% (Accuracy), < ±0.003 OD ±1.0% (Precision), 0–3 OD (VIS/UV)
Absorbance Range
0–3 OD (VIS & UV)
Sensitivity
FL (Mono): 1 pM; FL (Filters): 0.3–0.5 pM; Lumi: 2–4 pM; TRF: 10 fM; FP: 1–2 mP @ 1–10 nM
Measurement Speed
Abs: 28s; FL: 21s; Lumi: 21s; TRF: 25s; FP: 35s
Dynamic Range
Wide (due to ultra-cooled PMT)
MASS RANGE AND ANALYTE DETECTION
Wavelength Range
Abs: 230–1000 nm; FL Ex: 250–830 nm; FL Em: 270–850 nm; Lumi: 300–850 nm; TRF: Ex 350 nm, Em 450–750 nm; FP: 300–750 nm
Wavelength Selection
Hybrid (Monochromator + Filters), 1-nm steps, NFC filter ID
Measurement Technology
Hybrid Multi-Mode (Abs, FL, Lumi, TRF, FP, expandable to TR-FRET, BRET, etc.)
IONIZATION, SOURCE AND INTERFACE
Detector
Silicon photodiode, ultra-cooled PMT
Optical System
Hybrid system, xenon flash lamp, ultra-cooled PMT
Light Source
High-power xenon flash lamp
Excitation and Emission Filters
Hybrid system, auto ID via NFC
MASS ANALYZER
Autofocus
Not specified
Plate Shaking
Linear, Orbital, Double orbital
CHROMATOGRAPHY AND SAMPLE HANDLING
Microplate Formats
6–384 well plates
Reagent Injector System
SpectraMax Injector w/ SmartInject® (low dead volume, overflow protection)
Plate Reader Mode
Abs, FL (top/bottom), Lumi (top/bottom), TRF, FP, HTRF; Expandable to TR-FRET, BRET, DLR, WB
DATA ACQUISITION AND ANALYSIS
Data Acquisition
Onboard storage, QuickSync to network, Excel-compatible output
Data Analysis
SoftMax® Pro / Pro GxP Software
AUTOMATION AND SOFTWARE
Automation
Robotics / automation supported
Software
SoftMax® Pro, Pro 7.2 GxP, Touch Software
OPERATIONAL FEATURES
Ease of Use
Touchscreen, NFC, Quick Read, protocol library, temp control, auto filter ID
Maintenance and Durability
Not specified
Operating Conditions
Ambient +5°C to 66°C
Power and Cooling
Ultra-cooled PMT; power specs not specified
Dimensions and Footprint
H: 40.1 cm; W: 53.2 cm; D: 59.8 cm
GENERAL INFORMATION
Brand and Model
Moleculer Devices, SpectraMax® iD5
Documentation and Support
Validation plates, GxP Validation Package, installation/training services
Compatibility and Connectivity
QuickSync, network integration, touchscreen/computer operation
Configuration and Options
iD5 (Abs/FL/Lumi/TRF/FP + expansions)
Licensing and Certification
GxP-compliant (SoftMax® Pro 7.2 GxP, Starter Kit), FDA 21 CFR Part 11, EudraLex Annex 11
Cost and Operational Expenses
Not specified
