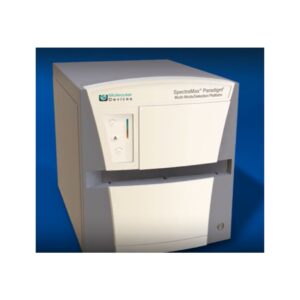

Moleculer Devices SpectraMax Paradigm Multi-Mode Microplate Reader
Sign in to view price
$Y5TLXPERFORMANCE
Reading Accuracy
Abs accuracy: ±(2% + 0.010) OD @ 2 OD, 405 nm; Precision: ±(1% + 0.005) OD
Absorbance Range
0–3.5 OD; Resolution: 0.0001 OD
Sensitivity
FI: 0.003–0.1 fmol; LUM: 0.15–0.5 fmol; TRF: 0.6–10 amol; FP: 0.5–6 mP
Measurement Speed
Abs: 19s; FL: 13s; LUM: 11s; TRF: 12s; FP: 17s; AS: 22s
Dynamic Range
>6 decades linear; up to 7 logs in one pass
MASS RANGE AND ANALYTE DETECTION
Wavelength Range
Abs: 230–1000 nm; FL Ex: 360–790 nm; Em: 400–850 nm
Wavelength Selection
1 nm increment; Bandwidth: Abs: 4 nm; FL/TRF/LUM: ±20 nm
Measurement Technology
Modular, user-upgradeable cartridge system
IONIZATION, SOURCE AND INTERFACE
Detector
Silicon photodiode, 2 PMTs
Optical System
Label-specific optics; auto Z-height optimization
Light Source
Xenon flash lamp, high-power LEDs/laser
Excitation and Emission Filters
Cartridge filters & monochromator with app-optimized optics
MASS ANALYZER
Autofocus
Auto Z-height lens adjustment for all modes
Plate Shaking
Linear, Orbital
CHROMATOGRAPHY AND SAMPLE HANDLING
Microplate Formats
6–1536 well plates supported
Reagent Injector System
Optional
Plate Reader Mode
Abs, FL, LUM, TRF, FP, HTRF, AlphaScreen, AlphaLISA
DATA ACQUISITION AND ANALYSIS
Data Acquisition
Endpoint, Kinetic, Spectrum scan*, Well scan*
Data Analysis
SoftMax® Pro; EC50, Z-factor, 21+ curve fits, live reports
AUTOMATION AND SOFTWARE
Automation
Robotic compatible; supports StakMax®
Software
SoftMax® Pro (GxP available); 140+ protocols
OPERATIONAL FEATURES
Ease of Use
Intuitive software; cartridge-based configuration
Maintenance and Durability
Long-life LEDs; spec valid for maintained systems
Operating Conditions
Temp: Ambient+4°C to 45°C; Uniformity: ±0.75°C
Power and Cooling
100–240 VAC, 2 A, 50/60 Hz; Cooling: Not specified
Dimensions and Footprint
45×39.2×63 cm; Weight: 45 kg (99 lbs)
GENERAL INFORMATION
Brand and Model
SpectraMax® Paradigm® by Molecular Devices
Documentation and Support
Available online; support via phone, web, email
Compatibility and Connectivity
RS232, USB, Robotic Compatible
Configuration and Options
Cartridge-based, detection modes user-upgradeable
Licensing and Certification
Certified for Cisbio HTRF; Patent-pending design
Cost and Operational Expenses
Not specified
