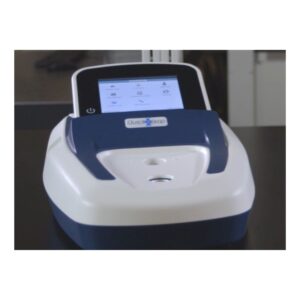

Moleculer Devices SpectraMax QuickDrop UV-Vis Spectrophotometer
Sign in to view price
$WQJ72PERFORMANCE
Reading Accuracy
±0.005 A or 1% of reading (whichever is greater at 546 nm)
Absorbance Range
'-0.3A to 2.5A (standard); -0.3A to 50A (10 mm equivalent)
Sensitivity
1 ng/µL (Micro-Volume Port); 0.5 ng/µL (Cuvette Port)
Measurement Speed
4 seconds (96 wells or single read)
Dynamic Range
2,500 ng/µL (Micro-Volume); 10,000 ng/µL (Cuvette)
MASS RANGE AND ANALYTE DETECTION
Wavelength Range
190 – 1100 nm
Wavelength Selection
5 nm bandwidth, ±2 nm accuracy, ±1 nm repeatability, 1 nm increments (Monochromator)
Measurement Technology
UV-Vis Spectrophotometer, Absorbance Reader
IONIZATION, SOURCE AND INTERFACE
Detector
1024 element CCD array
Optical System
Split beam, includes Monochromator
Light Source
Pulsed Xenon lamp
Excitation and Emission Filters
Not specified
MASS ANALYZER
Autofocus
Not specified
Plate Shaking
Not specified
CHROMATOGRAPHY AND SAMPLE HANDLING
Microplate Formats
Not applicable (uses micro-volume & cuvette ports)
Reagent Injector System
Not specified
Plate Reader Mode
Endpoint, kinetic, spectrum scan (not traditional plate reader)
DATA ACQUISITION AND ANALYSIS
Data Acquisition
Touchscreen display, USB flash drive export
Data Analysis
Preconfigured and custom methods, USB export
AUTOMATION AND SOFTWARE
Automation
Stand-alone unit, no automation connection info
Software
Touchscreen, 6 (7 listed) languages, custom setup
OPERATIONAL FEATURES
Ease of Use
Touchscreen, one-swipe cleaning, maintenance-free, USB export
Maintenance and Durability
No calibration, fixed pathlength, no moving parts in sample port
Operating Conditions
Not specified
Power and Cooling
Not specified
Dimensions and Footprint
190 × 290 × 410 mm; < 4 kg; small footprint
GENERAL INFORMATION
Brand and Model
Moleculer Devices, SpectraMax QuickDrop UV-Vis Spectrophotometer
Documentation and Support
Datasheet, eBook, resources, contact info on website
Compatibility and Connectivity
USB flash drive export; no dedicated computer needed
Configuration and Options
Stand-alone, touchscreen, 0.5 µL min volume (Micro), cuvette options (1–10 mm)
Licensing and Certification
Patents listed; regulatory certifications not specified
Cost and Operational Expenses
Low setup cost, maintenance-free
