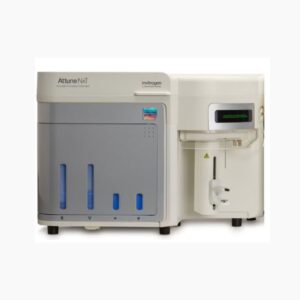

Thermo Fisher Scientific Attune™ NxT Flow Cytometer, blue catalog no-A24864

Detection Sensitivity

≤80 MESF for FITC, ≤30 MESF for PE, ≤70 MESF for APC.

Dynamic Range

Not specified

Event Rate

Up to 35,000 events/sec (+10% coincidence), max 65,000 events/sec.

Sample Throughput

Acquisition up to 10X faster, high-throughput with CytKick and CytKick Max autosamplers.

Resolution

CV <3% for fluorescence, optimized for blood cell resolution, flat-top laser <3% CV.

Coincidence Rate

True acquisition speed up to 35,000 events/sec (+10% coincidence rates).

Flow Stability

Clog-resistant syringe-driven system, engineered for large/sticky cells.

Data Acquisition Software

Attune Cytometric Software, Minitower PC, Windows 10.

Parameters Per Event

16 parameters, up to 34 with data acquisition.

Compensation Tools

Full matrix, automated/manual modes, compensation beads available.

Real-Time Data Analysis

Live statistics update during acquisition, direct concentration measurement.

Histogram/Scatter Plot Tools

Comparative overlays, 3D view, publication-quality images.

Gating Strategies

Hierarchical gating with derived gates.

Multi Parameter Analysis

Supports up to 14 colors, 16 parameters, high-throughput multiplexing.

Data Export Formats

FCS 3.1/3.0, TIF, PNG, BMP, JPG, GIF, EMF.

Automated Startup & Shutdown

Automated cycles for start-up and shutdown (<15 min).

Remote Operation Capabilities

Smart Monitor™ for real-time monitoring, remote diagnostics.

Scheduling & Batch Processing

CytKick and CytKick Max for high-throughput batch processing.

API / LIMS Integration

Not specified

Advanced Analysis Software

Includes live data streaming, overlays, heat maps, voltage adjustments, publication-quality graphics.

Quality Control Features

Daily baseline tests, Levey-Jennings plots, production verification.

Compliance Tools

21 CFR part 11 compliant software (license required).

User Interface

Fully customizable software with user accounts and roles.

Ease of Use

One-click transitions, simplified compensation beads, improved workflow.

Maintenance Requirements

Minimal fluidics maintenance, automated cycles, fixed optical alignment.

Durability & Reliability

Robust installation and production verification.

Operating Conditions

15–30°C, 10–90% humidity, non-condensing.

Noise & Vibration Levels

Audible noise <65 dBA.

Power Supply Requirements

100–240 VAC, <150 W for instrument, <300 W for autosamplers.

Dimensions and Weight

Instrument: ~40 x 58 x 43 cm, 29 kg. Autosampler: 43 x 33 x 41 cm, 16.9 kg (empty).

Cooling System

Thermoelectric cooler onboard, passive cooling for autosampler.

Product Type

Attune™ NxT Flow Cytometer.

Documentation and Support

Quick reference card, learning center, virtual/in-person training.

Upgrade Options

Field upgradeable lasers, CytKick Max autosampler, extended fluidics.

Regulatory Certifications

ISO 13485:2003, CE mark, UL, CAN/CSA, Class I laser product.

Connectivity

USB cable, "Connect: Lab, Data, Apps" online services.

Compatibility

Compatible with Attune™ NxT, various tubes, plates, and microcentrifuge racks.

Warranty & Service Agreements

1-year warranty, extended warranty, service plans available.
