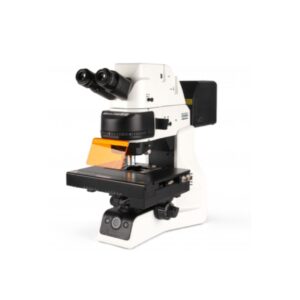

Motic PA53-FS6 Scan

Magnification Range

Objectives: 2X,4X,10X,20X,40X,50X,60X,100X; Eyepieces: 10X; PA53 BIO SCAN scanning: 2X-100X (oil 50X/100X)

Numerical Aperture (NA)

Objectives: 0.05–1.3 (varies by mag); Condensers: 0.65–1.25 (various types)

Resolution

Not specified

Field of View (FOV)

Eyepieces FN23, FN25; Field diameter example: 22mm (10X objective)

Depth of Field

Extended depth-of-field scan mode (PA53 SCAN); Auto fusion focus (PA53 BIO SCAN); values not specified

Contrast Methods

Brightfield, fluorescence, darkfield, phase contrast, polarized light

Optical System Type

Infinity-Corrected Optical System (CCIS®); infinity achromatic objectives

Motorized Components

Motorized 5-position nosepiece; motorized XY stage; motorized focus on BIO SCAN

Automated Imaging Sequences

Standard, high-precision, extended depth-of-field, Z-stack scan; motorized X/Y/Z control

Software for Image Analysis

AI Analysis, Image Management, Consultation Platform, WSI zoom/edit/export; fluorescence software

Remote Operation Capability

Consultation platform for image sharing; direct remote control not specified

Data Export Formats

WSI images exportable; disc burning supported; file formats not specified

Integration with Laboratory Information Systems (LIS)

Not specified

Ergonomic Design

Adjustable focusing knob; symmetrical controls; 30° tube angle; user-friendly camera design

Modular Expandability

Modular configurations; optional accessories; filter customization; Multi-Person Viewing system

Maintenance Requirements

ECO sleep mode; halogen bulb >5x longer life; LED >25,000 hrs; anodized scratch/chemical resistant stage

Power Supply Specifications

Moticam cameras USB-powered (<1.5W); microscope power details not specified

Product Series

PA53 Series: BIO, FS6, FS6 Plus, SCAN (BIO SCAN, FS6 SCAN); related: LUMOS, EasyScan, Moticam S, Swift

Technical Support Availability

Affordable technical support; contact info for Canada, Germany, Spain, USA, Hong Kong
