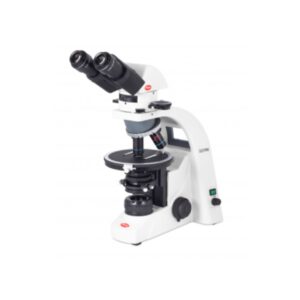

Motic BA310 POL Trinocular

Magnification Range

40X to 600X standard; up to 1000X optional; photo eyepieces 2.5X, 4X

Numerical Aperture (NA)

Std: 4X/0.10,10X/0.25,40X/0.65,60X/0.8; Opt: 20X/0.40, 50X/0.55, 100X/0.8, others

Resolution

Not specified; strain-free optics, CCIS®, fine focus 2 μm

Field of View (FOV)

Widefield N-WF10X/20mm eyepieces; field number 20mm

Depth of Field

Not specified

Contrast Methods

Polarization, Brightfield; no Darkfield/DIC; Koehler illumination

Optical System Type

Colour Corrected Infinity Optical System (CCIS®)

Motorized Components

Not specified

Automated Imaging Sequences

Not specified

Software for Image Analysis

Motic Images Plus 3.0; AI Analysis software listed but not confirmed for this model

Remote Operation Capability

Wi-Fi models controllable via MotiConnect App; tablet hotspot for remote access

Data Export Formats

Not specified

Integration with Laboratory Information Systems (LIS)

Not specified

Ergonomic Design

30° inclined tube; interpupillary distance 55-75mm; fatigue-free eyepieces

Modular Expandability

Binocular/trinocular; optional objectives, compensators, filters, stages, camera systems

Maintenance Requirements

Anti-fungus treatment; lead-free; no detailed schedule

Power Supply Specifications

110-240V CE; internal transformer; 6V/30W halogen; optional 50W Epi-Illuminator

Product Series

Motic BA family; based on BA Biomedical Microscope Series

Technical Support Availability

Contact info for Motic HK, Canada, Germany, Spain; online product registration, warranty, FAQ
