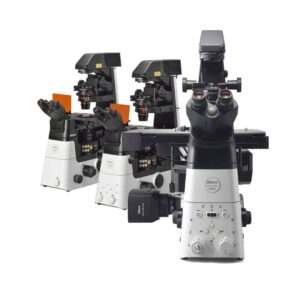

Nikon Instruments ECLIPSE Ti2-A

Magnification Range

Manual switching of 1.0X/1.5X; CFI objectives 2X to 100X

Numerical Aperture (NA)

Varies by objective (e.g., 4X NA 0.13, 100X NA 1.45)

Resolution

Super-resolution compatible with Deconvolution algorithms

Field of View (FOV)

25mm (C-mount: 22; F-mount: 25)

Depth of Field

Not specified (EDF available)

Contrast Methods

DIC, NAMC, Apodized Phase Contrast, Epi-fluorescence

Optical System Type

Infinity-corrected CFI60

Motorized Components

Manual model, no motorized focus or stage

Automated Imaging Sequences

Supported through NIS-Elements

Software for Image Analysis

NIS-Elements with various analysis modules

Remote Operation Capability

Tablet control via wireless LAN

Data Export Formats

Not specified

Integration with Laboratory Information Systems (LIS)

Not specified

Ergonomic Design

Redesigned for user comfort; optimized in the dark

Modular Expandability

Stage up kit, LAPP modules, back port unit

Maintenance Requirements

Not specified

Power Supply Specifications

TI-PS100W/A for 100W halogen bulb

Product Series

ECLIPSE Ti2 Series

Technical Support Availability

Service Center Locator, Service Agreements
