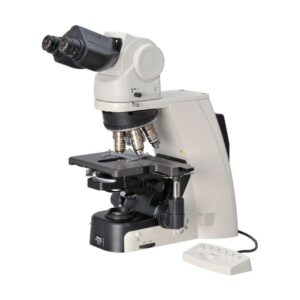

Nikon Instruments ECLIPSE Ci-E

Magnification Range

1x–100x (remote controlled)

Numerical Aperture (NA)

Condenser: 0.9/0.22; Objectives: not specified

Resolution

Fine focus scale: 1 µm; Optical resolution: not specified

Field of View (FOV)

Eyepieces: 14.5–25 mm; Tubes: 22 mm or 25 mm

Depth of Field

Not specified

Contrast Methods

BF, DF, Phase, Simple & Color Polarizing, Epi-fluorescence (accessories)

Optical System Type

CFI60 Infinity Optical System

Motorized Components

Nosepiece, condenser, magnification switching

Automated Imaging Sequences

Auto light settings, scene modes, image stitching

Software for Image Analysis

Measurement, annotation (via NIS-Elements)

Remote Operation Capability

Full control via tablet/smartphone

Data Export Formats

Not specified

Integration with Laboratory Information Systems (LIS)

Not specified

Ergonomic Design

Adjustable tubes, risers, stage height, and handle position

Modular Expandability

Objectives, cameras, light sources, tubes, software, etc.

Maintenance Requirements

LED (60,000 hr); ceramic stage; Nikon service resources

Power Supply Specifications

13W (Brightfield mode); Voltage not specified

Product Series

ECLIPSE Ci Series

Technical Support Availability

Nikon service locator, warranty, agreements, support
