Nikon Instruments SMZ1270

Magnification Range

0.63–8× zoom (12.7:1); total 3.15–480×; 15–540× with coax epi

Numerical Aperture (NA)

Varies by objective/zoom: 0.0095–0.210

Resolution

High apochromatic sharpness; no numeric value specified

Field of View (FOV)

69.8–1.4 mm (0.5×–2× objectives @ 0.63–8×); eyepiece F.N. 22/16/12.5/7

Depth of Field

Not specified (EDF via NIS‑Elements)

Contrast Methods

Diascopic bright‑field; coaxial epi; OCC oblique; polarizing; dark‑field

Optical System Type

Parallel‑optics zoom; apochromatic optics

Motorized Components

None

Automated Imaging Sequences

Time‑lapse & Z‑stack via NIS‑Elements

Software for Image Analysis

NIS‑Elements: EDF, measurements, annotations, multichannel processing

Remote Operation Capability

Not specified

Data Export Formats

Not specified

Integration with Laboratory Information Systems (LIS)

Not specified

Ergonomic Design

Tilt tubes (0–30°, 20°), slim bases, front controls, adjustable eyepoints

Modular Expandability

Yes: intermediate tubes, nosepieces, stages, illuminators, objectives, accessories

Maintenance Requirements

Not specified (consult manuals; long‑life LEDs)

Power Supply Specifications

AC adapters & cables (voltage/current not specified)

Product Series

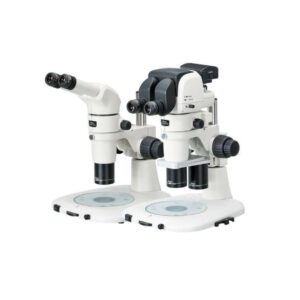

Nikon SMZ1270 parallel-optics stereo zoom microscope

Technical Support Availability

Nikon global service network; warranty; service center locator; online guides
