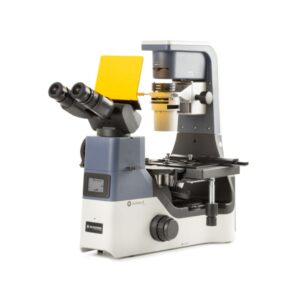

Euromex Achios-X Inverso Fluorescence

Magnification Range

Objectives: 4x, 10x, 20x, S40x, S60x; Eyepieces: 10x; Total = Obj. × Eyepiece

Numerical Aperture (NA)

Obj: 0.13(4x), 0.30(10x), 0.45(20x), 0.60(S40x), 0.70(S60x); Condenser NA: 0.30 (AI.1xxx/3xxx/4xxx)

Resolution

High, near diffraction limit; Specific value not provided

Field of View (FOV)

SWF 10x/22 mm wide field

Depth of Field

Not specified

Contrast Methods

Phase contrast, 3D relief contrast, Hoffman contrast via slider

Optical System Type

Plan Semi Apo Fluarex IOS; fungus treated; anti-reflection coating; low absorption glass

Motorized Components

Not specified

Automated Imaging Sequences

Not specified

Software for Image Analysis

Not specified

Remote Operation Capability

Not specified

Data Export Formats

Not specified

Integration with Laboratory Information Systems (LIS)

Not specified

Ergonomic Design

Binocular ergohead (5-35° tilt); interpupillary 48-75 mm; low-mounted knobs; left/right interchangeable fine focus; rear-tilting illumination column; Smart Light Control

Modular Expandability

Optional side photoport, head types, metal inserts for dishes/plates

Maintenance Requirements

Fungus treated optics; anti-reflection coating; NeoLED™ up to 50,000 hrs; dust cover included

Power Supply Specifications

Internal 100-240 V CE; Fuse 500 mA 250 Vac

Product Series

Achios-X Inverso Fluorescence

Technical Support Availability

Not specified
