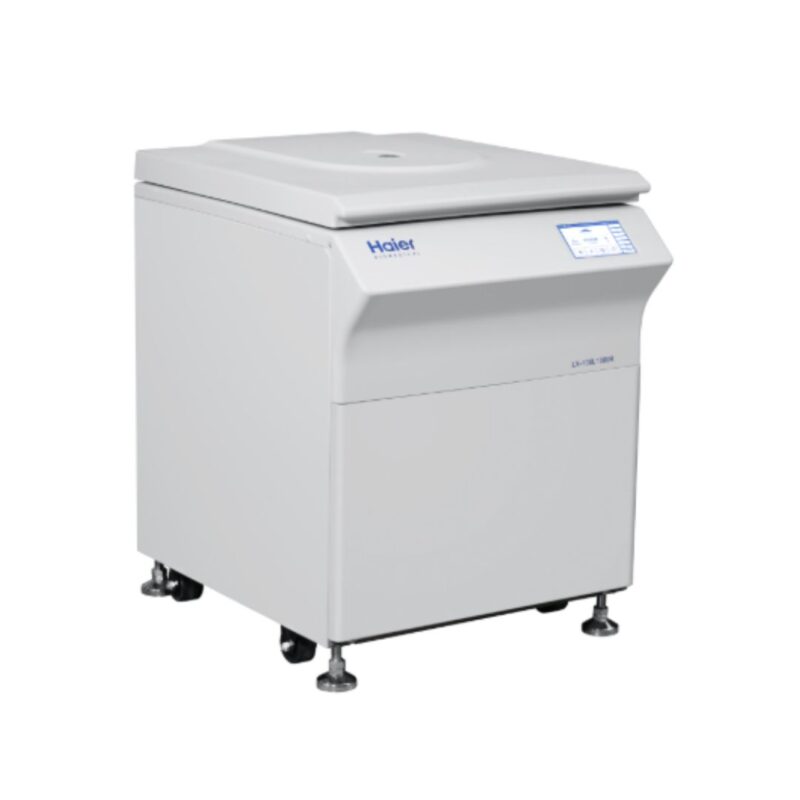

Haier Biomedical LX-100L1000R

Refrigerated centrifuge for high-volume sample processing.

Sign in to view price

$S9WME

Get a Quote

Add to Compare

Features

  • Large volume rotor support
  • Stable cooling system
  • Digital speed and temp control
  • Rugged construction for durability
  • Advanced safety mechanisms

Applications

  • Blood bank operations
  • Large scale diagnostics
  • Industrial lab processes
  • High-throughput sample separation
Haier Biomedical LX-100L1000R

Product Specifications

Sign in to view the complete product specifications

PERFORMANCE

Maximum Speed (RPM)
500333103000 rpm
Maximum Relative Centrifugal Force (RCF)
184590 44 g
Acceleration/Deceleration Time
11 acceleration + 12 deceleration stages
Temperature Control Range
720 to 4077C 7177C increments7
Noise Level
22263 dB2A2
Imbalance Detection
Real4time detection with automatic shutdown4 imbalance alarm included
Run Time Range
1 min to 99 h 59 min 59 s 717second increments7
K-Factor (Clearing Factor)
Not specified

ROTOR AND CAPACITY

Rotor Types (Fixed Angle, Swinging Bucket, Vertical)
Fixed4angle 46441000 ml4 644500 ml options4
Maximum Capacity (Volume)
6 44 1000 ml 46 liters total4
Number of Tubes per Rotor
6 77 1000 ml or 6 77 500 ml
Tube Size Compatibility
135 ml to 1 L 3with adapters3
Rotor Recognition (Auto-ID)
Automatic RFID rotor identification
Rotor Material
Carbon fiber 3 Aluminum alloy
Rotor Lid Type (e.g., Aerosol-tight)
Sealed rotor available 9not explicitly labeled aerosol9tight9

SAMPLE HANDLING

Sample Volume Range
185 ml to 1 L
Sample Type Compatibility (e.g., Blood, DNA, RNA)
Proteins1 bacteria1 biopharmaceutical samples1 academic 1amp1 production research
Balance Detection
Real1time with alarm and auto1stop
Sample Temperature Monitoring
Real7time display and USB7exported records
Sealing Options for Samples
Sealed fixed6angle rotors available

CONTROL AND INTERFACE

Display Type (e.g., LCD, Touchscreen)
78inch touchscreen with visual track bar
Programmable Settings
Over 1000+ user4defined programs supported
User Access Control
Login interface with user profiles 5suggested by UI5
Data Logging Capability
USB export of speed8 time8 temperature8 curves8 alarms
Alarm Systems (e.g., End of Run, Imbalance)
Multiple7 voltage7 temp7 overspeed7 imbalance7 rotor7 brake7 rotor life7 others
Language Options
English 4others not specified4

AUTOMATION AND CONNECTIVITY

Remote Monitoring Capability
Not specified
Integration with Laboratory Information Systems (LIS)
Not specified
USB/Ethernet Connectivity
USB available1 Ethernet not mentioned
Software Compatibility
Not specified
Automated Rotor Recognition
Yes4 via RFID
Pre-programmed Protocols
Quick access to stored programs

SAFETY FEATURES

Lid Locking Mechanism
Intelligent locking with emergency release
Emergency Stop Function
Not specified
Over-speed Protection
RFID4based rotor ID + overspeed alarm
Over-temperature Protection
High2temperature alarm
Biocontainment Certification
CE certified3 sealed rotor available
Rotor Life Management
Rotor life reminder alarm included

OPERATIONAL FEATURES

Footprint Dimensions
740 55 920 55 990 mm
Weight
Net9 380 kg9 Gross9 475 kg
Power Requirements
400V 3N350360Hz3 8800 W
Cooling System Type (e.g., Air, Refrigerated)
Refrigerated7 fast pre7cooling buttons
Energy Consumption
8800 W
Maintenance Requirements
Maintenance8free brushless induction motor

GENERAL INFORMATION

Product Series
Floor6Standing Large6Capacity Refrigerated Centrifuge
Warranty Period
Not specified
