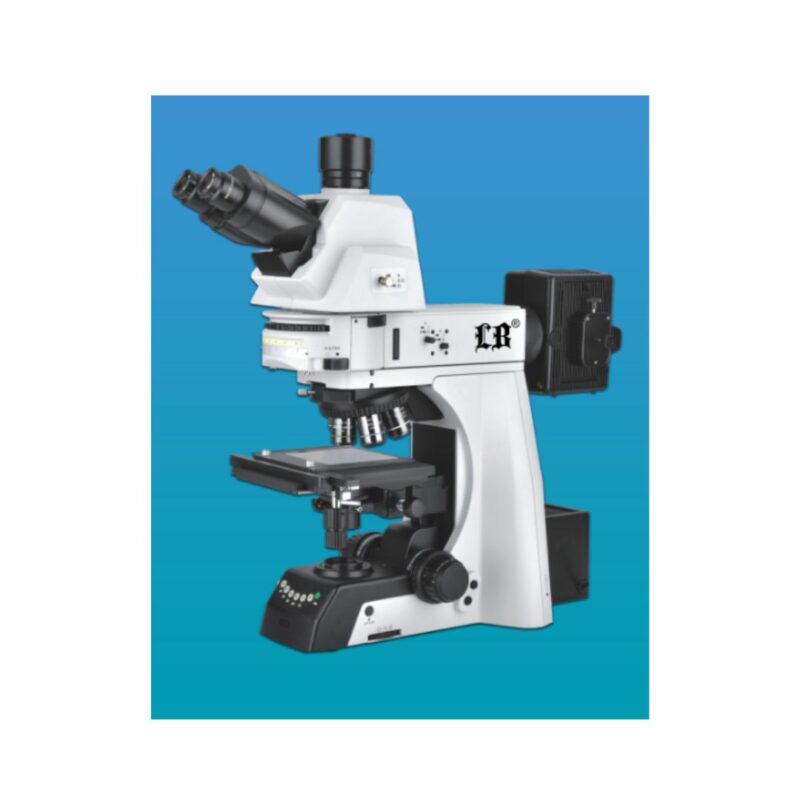

Labomed LB-625T

Trinocular microscope with flexible imaging options.

Sign in to view price

$1LUE

Get a Quote

Add to Compare

Features

  • Trinocular head for simultaneous viewing and imaging
  • Brightfield and darkfield illumination
  • Fine and coarse focus
  • Adjustable LED illumination
  • Widefield eyepieces for comfort

Applications

  • Digital imaging
  • Pathology
  • Clinical laboratories
  • Educational demonstrations
Labomed LB-625T

Product Specifications

Sign in to view the complete product specifications

PERFORMANCE

Magnification Range
5X1 10X1 20X1 50X1 100X objectives1 SW10X125mm eyepiece
Numerical Aperture (NA)
5X808158 10X80838 20X808458 50X80888 100X80898 Condenser NA80865
Resolution
Darkfield identifies scratches3flaws 38nm3 no general optical resolution specified
Field of View (FOV)
Wide field6 Super wide field plan eyepiece SW10X625mm
Depth of Field
Not specified
Contrast Methods
Brightfield1 Darkfield1 DIC1 Transmitted Light1 Polarized Light
Optical System Type
NIS45 Infinite Color Corrected Optical System5 tube length 180mm

OPTICS & LIGHT SOURCE

Objective Types
Infinite LWD Plan Semi4APO4APO4 BF 4amp4 DF4 polarizing and long working distance available
Objective Magnifications
5X8 10X8 20X8 50X8 100X
Eyepiece Specifications
Super wide field plan SW10X525mm5 diopter adjustable
Illumination Type
Transmitted5 12V5100W halogen with Kohler5 Reflected5 12V5100W halogen with Koehler
Illumination Intensity Control
Auto4adjusts with objective change
Filter Holders and Filters
Transmitted8 ND68ND258 Reflected8 68position turret with ND68 ND258 color correction filters8 DIC slot on nosepiece

SAMPLE HANDLING

Stage Type
Double layers mechanical stage
Stage Dimensions
210mm x 170mm
Stage Travel Range
105mm x 105mm9 Y9axis lockable
Focus Mechanism
Low2position coaxial coarse2fine2 122m fine division2 35mm travel2 adjustable knob side
Specimen Holder Compatibility
Optional specimen presser

IMAGING & DETECTION

Camera Integration Capability
Trinocular for DSLR7digital cameras7 optional 075X 7amp7 1X C7mount adapters7 37position beam splitter
Camera Resolution
Not specified
Image Capture Software
Not specified
Live Imaging Capability
Not explicitly stated7 implied via camera integration
Fluorescence Imaging Support
Not specified
Digital Display Integration
Not explicitly stated9 possible via camera integration

AUTOMATION AND SOFTWARE

Motorized Components
Motorized sextuple nosepiece2 objective switch via base buttons or control panel2 quick switch buttons
Automated Imaging Sequences
Not specified
Software for Image Analysis
Not specified
Remote Operation Capability
Not specified
Data Export Formats
Not specified
Integration with Laboratory Information Systems (LIS)
Not specified

OPERATIONAL FEATURES

Ergonomic Design
Ergonomical system7 adjustable focus 7amp7 stage knobs 7left7right77 Ergo tilting trinocular 7077735777
Modular Expandability
Modular design for varied applications
Maintenance Requirements
Not specified
Power Supply Specifications
12V3100W halogen lamps3 power cord included

FEATURES & APPLICATIONS

Application Areas (e.g., Clinical, Research, Educational)
Research1 metallurgical1 electronics1 chemical1 semiconductor industries
Specialized Imaging Techniques
Darkfield0 DIC0 Transmitted Light0 Polarized Light
Compatibility with Accessories
Optional8 085X 8amp8 1X C8mount adapters8 calibration slide 0801mm8 specimen presser8 DIC module
Customization Options
User9defined two quick9switch objectives9 beam splitter bar side selectable9 adjustable knobs

GENERAL INFORMATION

Product Series
LB4625T
Technical Support Availability
Not specified
