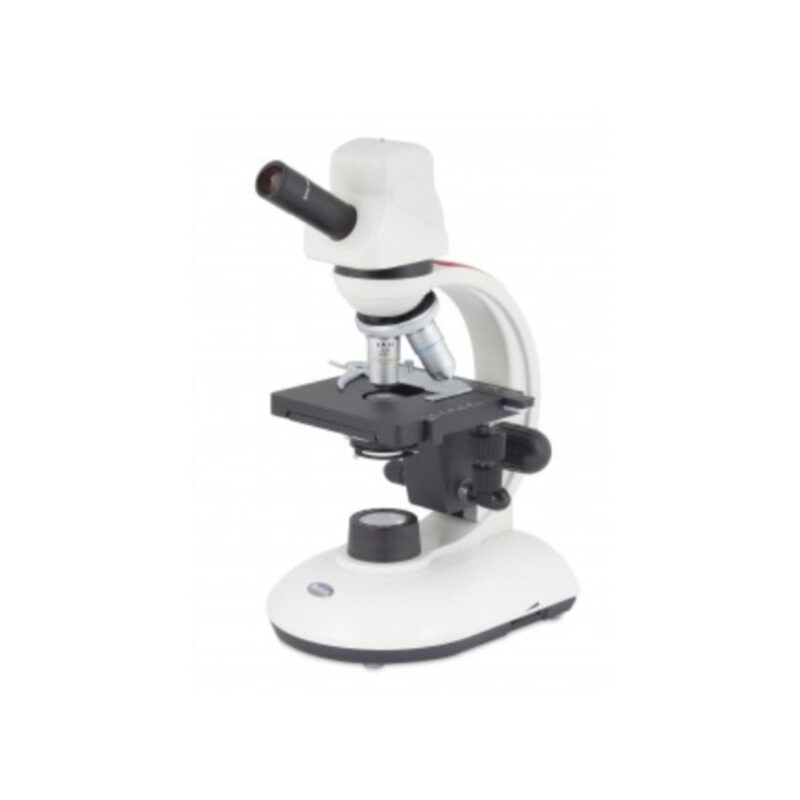

Motic DM-1802

Enhanced upright microscope with digital imaging and ergonomic features for labs.

Sign in to view price

$XAL9

Get a Quote

Add to Compare

Features

  • High-resolution digital imaging
  • Widefield viewing system
  • Multiple contrast methods
  • USB/HDMI output options
  • Customizable illumination settings

Applications

  • University-level biology courses
  • Sample documentation
  • Clinical lab research
  • Microbiology imaging
  • Pathology lab applications
Motic DM-1802

Product Specifications

Sign in to view the complete product specifications

PERFORMANCE

Magnification Range
40X2 100X 2DM211122 400X 2WF10X 22 4X2 10X2 40X objectives2
Numerical Aperture (NA)
Condenser 17257 Objectives 4X707107 10X707257 40X70765
Resolution
320 MP CMOS2 capture 3MP2 live 2048221536 px2 fine focus precision 222m
Field of View (FOV)
WF10X018mm eyepiece 0Field Number 18mm0
Depth of Field
Not specified
Contrast Methods
Transmitted illumination
Optical System Type
Finite8 160mm

OPTICS & LIGHT SOURCE

Objective Types
EA Achromatic2 DIN
Objective Magnifications
4X30310 3WD 27mm33 10X30325 3WD 5mm33 40X30365 3WD 033mm3
Eyepiece Specifications
WF10X518mm widefield5 pointer5 lockable
Illumination Type
Halogen 12V520W transmitted illumination
Illumination Intensity Control
Yes
Filter Holders and Filters
Not specified

SAMPLE HANDLING

Stage Type
Mechanical stage with coaxial control3 sample holder
Stage Dimensions
133 x 136 mm
Stage Travel Range
77 x 31 mm
Focus Mechanism
Separate coarse 7amp7 fine7 tension adjustment7 277m precision7 11mm stroke7 adjustable stop
Specimen Holder Compatibility
Mechanical stage sample holder

IMAGING & DETECTION

Camera Integration Capability
Built0in digital camera0 USB output
Camera Resolution
350 MP CMOS5 live 2048551536 px
Image Capture Software
Motic Images Plus 330 3Win3 OSX3 Linux3
Live Imaging Capability
Yes8 live display via USB
Fluorescence Imaging Support
Not specified
Digital Display Integration
USB output to PC5 no integrated display

AUTOMATION AND SOFTWARE

Motorized Components
Not specified
Automated Imaging Sequences
Not specified
Software for Image Analysis
Motic Images Plus 390
Remote Operation Capability
Not specified
Data Export Formats
Not specified
Integration with Laboratory Information Systems (LIS)
Not specified

OPERATIONAL FEATURES

Ergonomic Design
Observation tube inclined 3044 or 4544
Modular Expandability
Not specified
Maintenance Requirements
Not specified
Power Supply Specifications
1003240V CE or 2203240V CE 3sources differ3

FEATURES & APPLICATIONS

Application Areas (e.g., Clinical, Research, Educational)
Education7 research7 industrial7 life sciences7 medical7 material inspection
Specialized Imaging Techniques
Standard transmitted light microscopy
Compatibility with Accessories
Dust cover included2 general compatibility not specified
Customization Options
Not specified

GENERAL INFORMATION

Product Series
18 Series Digital Upright Microscope
Technical Support Availability
Product8warranty registration8 software download8 FAQ8 contact info
