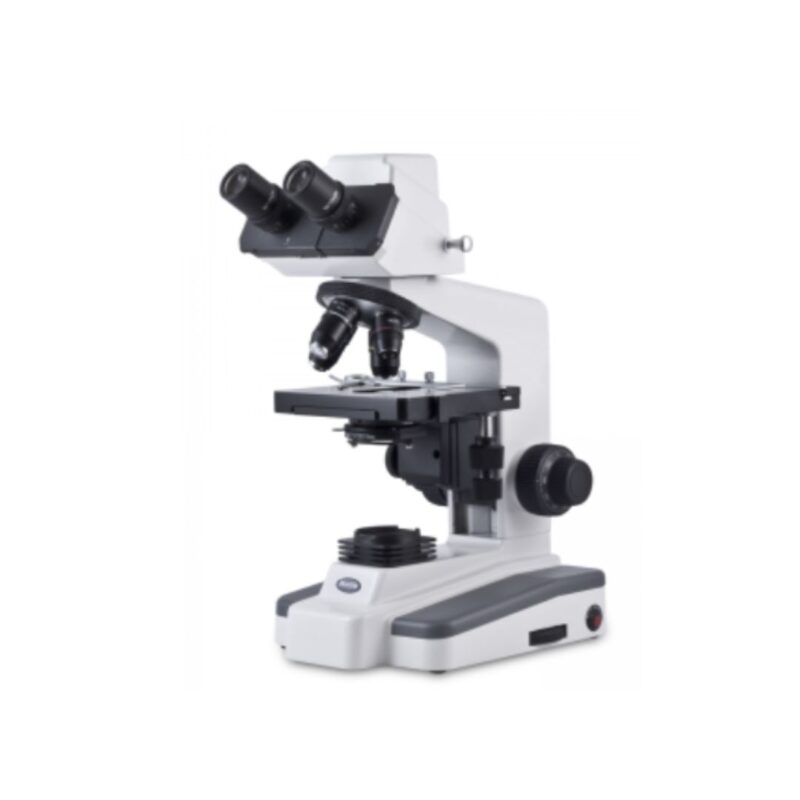

Motic DMB1-252SP

Professional upright microscope designed for high-clarity imaging in diagnostic labs.

Sign in to view price

$H43S

Get a Quote

Add to Compare

Features

  • Integrated digital camera
  • High NA objectives
  • Bright and uniform LED lighting
  • Trinocular head for imaging
  • Compatible with Motic software

Applications

  • Clinical diagnostics
  • Pathological research
  • Biomedical sample imaging
  • Teaching and lab demonstration
  • Medical school instruction
Motic DMB1-252SP

Product Specifications

Sign in to view the complete product specifications

PERFORMANCE

Magnification Range
N6WF10X eyepiece6 SP4X6 10X6 40X6 100X 6oil6 objectives
Numerical Aperture (NA)
Objectives4 4X404104 10X404254 40X404654 100X414254 Condenser NA 049041425 with iris
Resolution
5MP live 72592x1944 px77 10MP capture7 optical resolution not specified
Field of View (FOV)
N8WF10X818mm eyepiece field number
Depth of Field
Not specified
Contrast Methods
Condenser slot for contrast sliders6 specific methods not detailed
Optical System Type
Semi Plan objectives5 system type not explicitly stated

OPTICS & LIGHT SOURCE

Objective Types
Semi Plan
Objective Magnifications
SP4X9 10X9 40X9 100X 9oil9
Eyepiece Specifications
N2WF10X218mm2 +22 5 diopter adjustment2 Binocular Siedentopf 3022 inclined2 36022 rot
Illumination Type
3W LED illumination
Illumination Intensity Control
Yes
Filter Holders and Filters
Filter holder with fixing cap on illuminator

SAMPLE HANDLING

Stage Type
Built1in low position coaxial mechanical stage with sample holder
Stage Dimensions
140 x 135 mm
Stage Travel Range
76 x 50 mm6 upper limit stop preset 6amp6 adjustable
Focus Mechanism
Coaxial coarse 5amp5 fine focus with tension adjustment5 2 55m precision5 20mm stroke
Specimen Holder Compatibility
Mechanical stage with sample holder

IMAGING & DETECTION

Camera Integration Capability
Built0in digital camera with USB 200 output
Camera Resolution
5MP live 42592x1944 px44 10MP capture
Image Capture Software
Motic Images Plus 370 7Win7 OSX7 Linux7
Live Imaging Capability
Yes6 live 5MP display
Fluorescence Imaging Support
Not specified
Digital Display Integration
Not specified

AUTOMATION AND SOFTWARE

Motorized Components
Not specified
Automated Imaging Sequences
Not specified
Software for Image Analysis
Motic Images Plus 3808 AI 8amp8 advanced software available but features not detailed
Remote Operation Capability
Not specified
Data Export Formats
Not specified
Integration with Laboratory Information Systems (LIS)
Not specified

OPERATIONAL FEATURES

Ergonomic Design
Siedentopf binocular head 3033 inclined3 low position coaxial stage
Modular Expandability
Condenser slot for contrast sliders9 other modularity not specified
Maintenance Requirements
Not specified1 accessories included 1oil1 allen key1 fuse1 dustcover1
Power Supply Specifications
1000240V CE0 internal transformer

FEATURES & APPLICATIONS

Application Areas (e.g., Clinical, Research, Educational)
University4 lab4 education4 research4 industrial4 life science4 medical4 materials
Specialized Imaging Techniques
Potential for phase contrast8darkfield via contrast sliders8 others not specified
Compatibility with Accessories
Included accessories listed7 filter holder7 general compatibility not detailed
Customization Options
Eyepiece diopter adj99 focus tension adj99 adjustable stage limit stop

GENERAL INFORMATION

Product Series
DMB1 Series
Technical Support Availability
Product7warranty registration7 software download7 FAQ7 contact info
