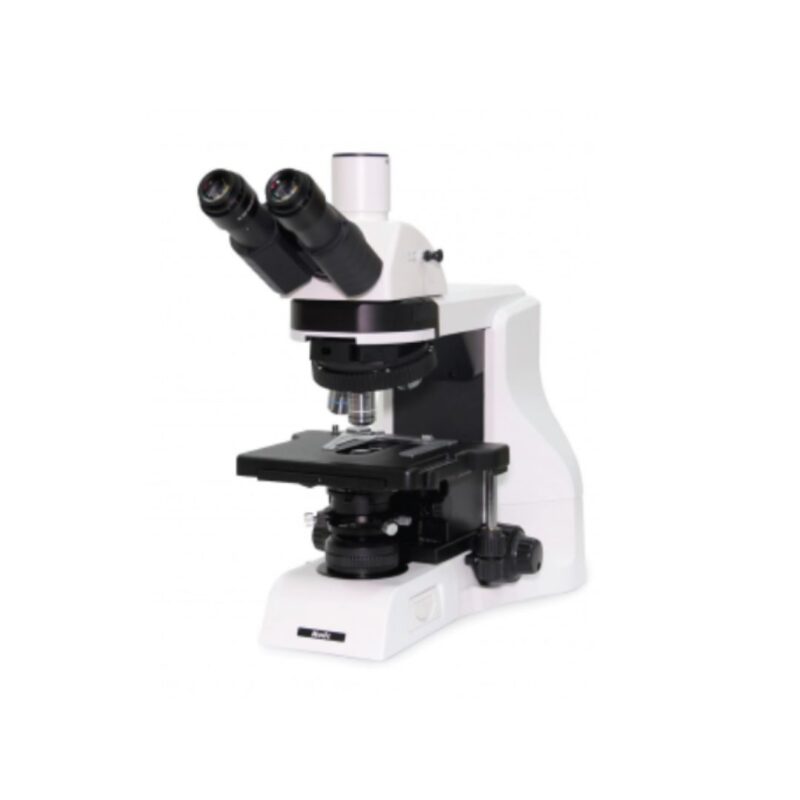

Motic PA43-BIO

Panthera microscope offering advanced optics and digital imaging capabilities.

Sign in to view price

$CF6XV

Get a Quote

Add to Compare

Features

  • Smart camera support
  • CCIS optics
  • LED illumination
  • USB/HDMI ports

Applications

  • University teaching
  • Medical labs
  • Digital microscopy
  • Histology
Motic PA43-BIO

Product Specifications

Sign in to view the complete product specifications

PERFORMANCE

Magnification Range
Objectives and eyepieces listed3 overall range not specified
Numerical Aperture (NA)
Condenser NA 089818258 Plan UC 50X NA 180 8oil88 others not specified
Resolution
Fine focus 061mm 6 166m resolution6 overall optical resolution not specified
Field of View (FOV)
Eyepieces WF 10X122 1field number11 exact FOV not specified
Depth of Field
Not specified
Contrast Methods
Brightfield3 Polarization3 Darkfield3 Phase contrast
Optical System Type
Colour Corrected Infinity Optical System 7CCIS777

OPTICS & LIGHT SOURCE

Objective Types
Plan UC Achromat Series6 Plan UC PH 6phase contrast6
Objective Magnifications
4X7 10X7 20X 7optional77 40X7 50X 7oil77 60X 7optional77 100X 7oil77 PH 10X7100X
Eyepiece Specifications
Wide6Field WF 10X6226 +66 5 Diopter adjustable
Illumination Type
Halogen 6V 30W 7 LED 3W interchangeable7 Full Kohler illumination7 LUMOS LED for FS6 model
Illumination Intensity Control
LUMOS LED controllable3 IL function for brightness memory3 reactivation on nosepiece rotate
Filter Holders and Filters
Condenser slider slot for contrast sliders4 specific filters not detailed

SAMPLE HANDLING

Stage Type
Rackless stage with coaxial controls
Stage Dimensions
180 x 170 mm
Stage Travel Range
80 x 55 mm
Focus Mechanism
25 mm stroke6 fine focus 061mm 6 166m6 upper limit stopper6 torque adjustment6 coaxial controls
Specimen Holder Compatibility
Not specified

IMAGING & DETECTION

Camera Integration Capability
Trinocular tube 910090 or 20980 light split99 compatible with Moticam USB9 Ultra HD9 Wi9Fi cams
Camera Resolution
Ultra HD cameras mentioned7 specific resolution not provided
Image Capture Software
EasyStitch Pro3 Moticam USB Starter3Expert3 MoticNet3 Ultra HD + Wi3Fi3 Tablet Solutions
Live Imaging Capability
Implied with cameras3software3 no detailed specs
Fluorescence Imaging Support
FS6 model supports fluorescence with LUMOS LED light source
Digital Display Integration
Tablet Solutions mentioned4 no built4in displays specified

AUTOMATION AND SOFTWARE

Motorized Components
Coded quintuple nosepiece 7electronic position77 motorization not specified
Automated Imaging Sequences
Not specified
Software for Image Analysis
AI Analysis Software 4MDP44 Routine and Advanced Software Series
Remote Operation Capability
Not specified
Data Export Formats
Not specified
Integration with Laboratory Information Systems (LIS)
Not specified

OPERATIONAL FEATURES

Ergonomic Design
Ergonomic stands mentioned for BIO series
Modular Expandability
Illumination interchangeable6 FS6 configurable with LUMOS6 condenser slider for contrast
Maintenance Requirements
ECO function power4saving4 heat4dissipating tech for halogen4 routine maintenance not detailed
Power Supply Specifications
Not specified

FEATURES & APPLICATIONS

Application Areas (e.g., Clinical, Research, Educational)
Clinical7 research7 education
Specialized Imaging Techniques
Brightfield0 Polarization0 Darkfield0 Phase contrast0 fluorescence 0FS60
Compatibility with Accessories
Illumination options2 Plan UC2PH objectives2 condenser accessories2 Motic cameras2software
Customization Options
Choice of halogen9LED9 FS6 with LUMOS LED9 optional objectives

GENERAL INFORMATION

Product Series
PA43 Series 2PA432BIO2 PA432PH22 part of PA and Life Science Series
Technical Support Availability
Product4Warranty registration4 software download4 FAQ4 contact 4HK4 Canada4 Germany4 Spain4 USA4
