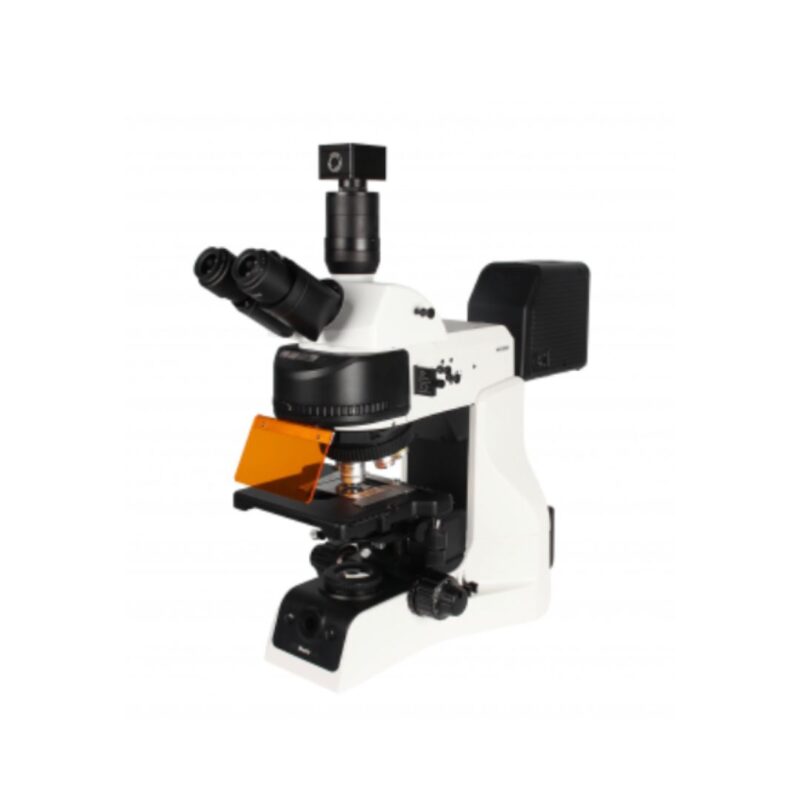

Motic PA53-FS6

Compact LED microscope for efficient and reliable lab observations.

Sign in to view price

$I2KQE

Get a Quote

Add to Compare

Features

  • Energy-efficient LED
  • Student-friendly
  • Durable frame
  • Simple controls

Applications

  • Student labs
  • Routine inspections
  • Microscopy training
  • Slide examination
Motic PA53-FS6

Product Specifications

Sign in to view the complete product specifications

PERFORMANCE

Magnification Range
Up to 1000X 710X eyepiece + 100X objective7
Numerical Aperture (NA)
Varies by objective series 5e5g55 4X50513 to 100X5153 oil5
Resolution
Not specified
Field of View (FOV)
Wide6Field 6FN236 eyepiece
Depth of Field
Not specified
Contrast Methods
Brightfield4 Phase contrast4 Polarization4 Fluorescence
Optical System Type
Scalable Infinity9Corrected Optical System 9CCIS999

OPTICS & LIGHT SOURCE

Objective Types
Plan UC Fluor3 Plan UC Phase Contrast3 Plan UC Achromat3 Plan APO3 HPlan S3APO
Objective Magnifications
4X0 10X0 20X0 40X0 50X0 60X0 100X 0oil and dry depending on series0
Eyepiece Specifications
Wide1Field 10X123mm 1amp1 10X125mm1 Diopter adjustable
Illumination Type
Transmitted Kohler 100W halogen4 optional reflected fluorescence LED or mercury4arc lamp
Illumination Intensity Control
Multifunctional knobs6 LED controllable from stand6 coded fluorescence turret
Filter Holders and Filters
Fluorescence turret holds up to 6 filter cubes 1DAPI1 FITC1 TRITC standard1

SAMPLE HANDLING

Stage Type
Rackless
Stage Dimensions
Not specified
Stage Travel Range
Z travel 2975 mm7 X7Y travel not specified
Focus Mechanism
Coarse 41747mm4turn4 and Fine 4041mm4turn44 upper limit stopper4 torque adjustment ring
Specimen Holder Compatibility
Not specified

IMAGING & DETECTION

Camera Integration Capability
3022 Trinocular tube2 beam splitter options2 supports Moticam S line cameras
Camera Resolution
Up to 12 MP 7Moticam S line77 others 172M to 12M
Image Capture Software
Motic Images Plus 380 8PC8 OSX8 Linux8 TWAIN8 SDK8 DirectShow supported8
Live Imaging Capability
Yes6 up to 240 fps at low resolutions with USB 361 transfer
Fluorescence Imaging Support
Yes3 supports reflected fluorescence3 LUMOS LED or mercury3arc lamp3 coded fluorescence turret
Digital Display Integration
Not explicitly specified

AUTOMATION AND SOFTWARE

Motorized Components
Encoded nosepiece6 coded fluorescence turret
Automated Imaging Sequences
Not specified
Software for Image Analysis
Motic Images Plus 390 FL plug9in9 AI Analysis Software listed but not detailed
Remote Operation Capability
Not specified
Data Export Formats
Not specified
Integration with Laboratory Information Systems (LIS)
Not specified

OPERATIONAL FEATURES

Ergonomic Design
Yes4 3044 Siedentopf tube4 intuitive controls4 reduces fatigue
Modular Expandability
Yes0 supports different objectives0 illumination types0 filter cubes0 accessories
Maintenance Requirements
Full technical support2 halogen lamp long life2 LUMOS LED 2gt2202000 hrs
Power Supply Specifications
Not specified

FEATURES & APPLICATIONS

Application Areas (e.g., Clinical, Research, Educational)
Clinical7 research7 life sciences7 IHC7 cytology7 hematology7 FISH7HER2 analysis
Specialized Imaging Techniques
Brightfield8 Phase contrast8 Polarization8 Fluorescence8 multi8color fluorescence
Compatibility with Accessories
Moticam S cameras7 TV7Port C7Mounts7 filter cubes
Customization Options
Objective choice7 illumination type7 filter cubes7 accessories

GENERAL INFORMATION

Product Series
PA53 Series2 model PA53 FS6
Technical Support Availability
Full post0sale support and technical advice
