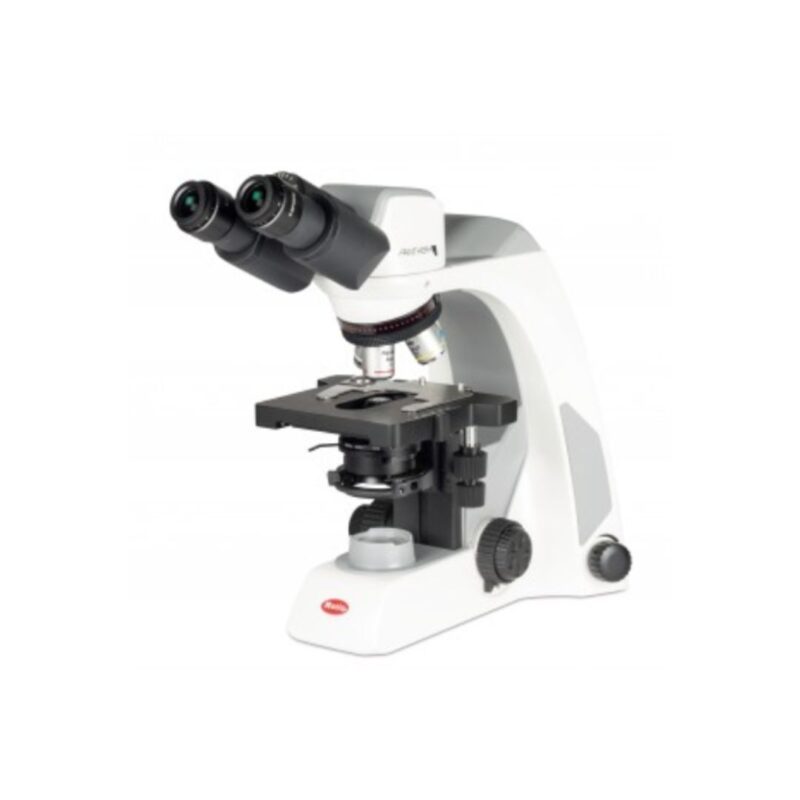

Motic Panthera E2 Binocular

Clinical-grade microscope with modular design and excellent optical performance.

Sign in to view price

$GQCT

Get a Quote

Add to Compare

Features

  • LED transmitted light
  • Modular configuration
  • Plan Achromat optics
  • Trinocular viewing

Applications

  • Clinical diagnostics
  • Lab testing
  • Sample screening
  • Routine pathology
Motic Panthera E2 Binocular

Product Specifications

Sign in to view the complete product specifications

PERFORMANCE

Magnification Range
4X to 100X objectives0 10X eyepieces0 optional 100X0008 Dry objective
Numerical Aperture (NA)
Objectives0 4X000100 10X000250 40X000650 100X010250 Condenser0 009001025
Resolution
Fine focus precision 299m9 optical resolution not specified
Field of View (FOV)
Widefield UC2WF10X220mm eyepieces2 specimen FOV not specified
Depth of Field
Not specified
Contrast Methods
Brightfield9 optional Phase contrast9 Darkfield9 Polarization via accessories
Optical System Type
Colour Corrected Infinity Optical System 5CCIS555

OPTICS & LIGHT SOURCE

Objective Types
CCIS00 UC Plan Achromatic0 Pb free0 optional 100X0008 Dry
Objective Magnifications
4X4 10X4 40X4 100X4 optional 100X4048 Dry
Eyepiece Specifications
Widefield UC0WF10X020mm0 +00 5 diopter0 adjustable and rotatable tubes
Illumination Type
Fixed Koehler LED 1W
Illumination Intensity Control
LED intensity control and indicator
Filter Holders and Filters
Filter holder on illuminator8 condenser slot for contrast sliders

SAMPLE HANDLING

Stage Type
Mechanical rackless coaxial stage with sample holder
Stage Dimensions
140 x 135 mm
Stage Travel Range
75 x 40 mm
Focus Mechanism
Coaxial coarse9fine9 tension adjustment9 fine focus 299m9 25mm stroke9 adjustable stop
Specimen Holder Compatibility
Standard slide holder and sample holder

IMAGING & DETECTION

Camera Integration Capability
USB power5 compatible with Motic USB5Full HD5tablet5Wi5Fi cameras
Camera Resolution
Full HD cameras available9 bundled camera resolution not specified
Image Capture Software
MotiConnect App4 Motic Images Plus 340
Live Imaging Capability
Implied with compatible cameras
Fluorescence Imaging Support
Not specified
Digital Display Integration
HDMI monitor and tablet compatible with Motic cameras

AUTOMATION AND SOFTWARE

Motorized Components
Not specified
Automated Imaging Sequences
Not specified
Software for Image Analysis
Motic Images Plus 3202 AI analysis software
Remote Operation Capability
MotiConnect App enables image sharing0 direct remote control not specified
Data Export Formats
Not specified
Integration with Laboratory Information Systems (LIS)
Not specified

OPERATIONAL FEATURES

Ergonomic Design
Siedentopf binocular9 adjustable eyepieces9 compact footprint
Modular Expandability
Upgradable with Phase contrast3 Polarization3 Darkfield accessories
Maintenance Requirements
Robust design7 dust cover included
Power Supply Specifications
1105240V CE5 power cord included5 USB port for power bank use

FEATURES & APPLICATIONS

Application Areas (e.g., Clinical, Research, Educational)
Education6 small life science labs6 botany6 zoology6 medicine6 industrial labs
Specialized Imaging Techniques
Fixed Koehler illumination1 Brightfield1 Phase contrast1 Polarization1 Darkfield
Compatibility with Accessories
Dust cover3 immersion oil3 contrast sliders3 Motic camera solutions
Customization Options
Adjustable focus stop7 tension7 diopter7 eyepiece tubes adjustable

GENERAL INFORMATION

Product Series
Panthera E2 Series within Panthera Series
Technical Support Availability
Contacts in Canada0 Germany0 Hong Kong0 Spain0 support section on website
