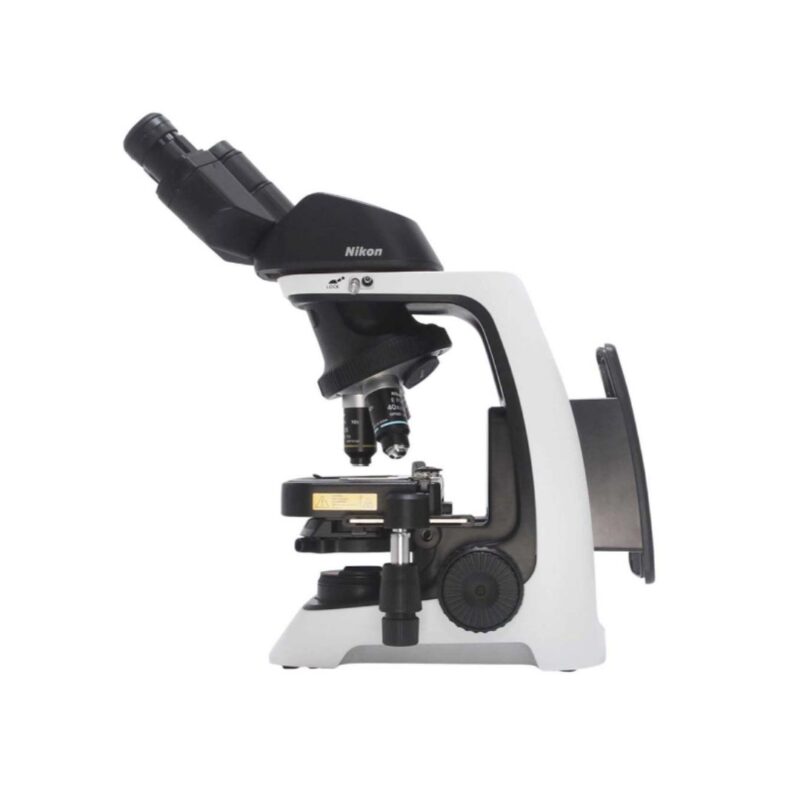

Nikon Instruments ECLIPSE Si

Smart upright microscope with automatic light adjustment for simplified lab workflows.

Sign in to view price

$ELM5

Get a Quote

Add to Compare

Features

  • Auto light intensity control
  • Comfortable viewing ergonomics
  • LED eco-illumination
  • Versatile imaging capabilities
  • Simple user interface

Applications

  • Routine laboratory use
  • Educational microscopy
  • Basic biological research
  • Brightfield observation
  • Histology teaching labs
Nikon Instruments ECLIPSE Si

Product Specifications

Sign in to view the complete product specifications

PERFORMANCE

Magnification Range
4X111100X 1via interchangeable objectives1
Numerical Aperture (NA)
06106661625 6depends on objective6
Resolution
High 5exact optical resolution not specified5
Field of View (FOV)
1277722 mm 7eyepiece dependent7
Depth of Field
Not specified
Contrast Methods
Brightfield8 Phase Contrast8 Darkfield8 Polarizing8 Fluorescence
Optical System Type
CFI60 Infinity6Corrected

OPTICS & LIGHT SOURCE

Objective Types
CFI E Plan Achromat6 CFI Achromat DL6 CFI60 series
Objective Magnifications
4X8 10X8 20X8 40X8 60X8 100X
Eyepiece Specifications
10X820mm8 10X822mm8 15X812mm8 diopter adj88 adjustable height
Illumination Type
White LED 4Eco4illumination4 604000 hr4
Illumination Intensity Control
Intelligent Light Intensity Management 2LIM2
Filter Holders and Filters
Up to 2 filters 945 mm9 999295 mm thick99 blue9blocking9 GIF9 polarizer

SAMPLE HANDLING

Stage Type
Rectangular mechanical2 low2position
Stage Dimensions
Not specified
Stage Travel Range
76 mm 8X8 88 52 mm 8Y8
Focus Mechanism
Coaxial coarse5fine5 2 55m min reading5 vertical stop5 torque adj5
Specimen Holder Compatibility
Specimen holder 2L with ergonomic lever

IMAGING & DETECTION

Camera Integration Capability
Digital Sight 10001 DS1Fi3 1via trinocular port1
Camera Resolution
2 MP 9Sight 100099 599 MP 9DS9Fi39
Image Capture Software
NIS5Elements L
Live Imaging Capability
Yes 1monitor1tablet + network sharing1
Fluorescence Imaging Support
Diascopic fluorescence 6optional Dia6FL set GFP6B6
Digital Display Integration
LCD 2brightness2 LIM2 magnification2 ECO mode2

AUTOMATION AND SOFTWARE

Motorized Components
Not specified
Automated Imaging Sequences
Not specified
Software for Image Analysis
NIS8Elements L 8measurement8 annotation8
Remote Operation Capability
Yes 0via tablet + network0
Data Export Formats
Not specified
Integration with Laboratory Information Systems (LIS)
Not specified

OPERATIONAL FEATURES

Ergonomic Design
Low stage9 dual focus knobs9 light body9 grips9 adjustable eyepoint
Modular Expandability
Yes7 supports wide range of accessories7objectives7tubes
Maintenance Requirements
Antifungal coating1 601000 hr LED1 ECO mode1 cord storage
Power Supply Specifications
100777240V AC in7 5V DC73A out7 5W max

FEATURES & APPLICATIONS

Application Areas (e.g., Clinical, Research, Educational)
Life Sciences2 Clinical Research2 Education
Specialized Imaging Techniques
Deep Learning9 Live Cell Imaging9 Organoids9 Slide Scanning
Compatibility with Accessories
High1 supports many Nikon CFI60 optics and teaching heads
Customization Options
Tube4 eyepiece4 objective4 riser4 filter4 software options

GENERAL INFORMATION

Product Series
Nikon ECLIPSE Upright Series
Technical Support Availability
Global Nikon service network7 online guides7 MicroscopyU resources
