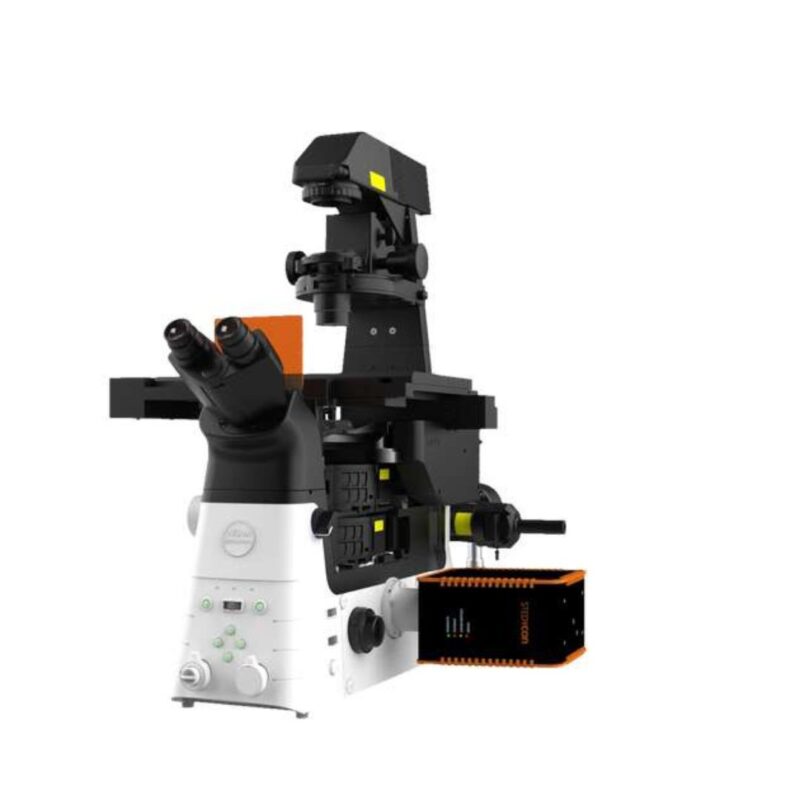

Nikon Instruments STEDYCON

STED-based compact module for nanoscale super-resolution imaging.

Sign in to view price

$ELX3WN

Get a Quote

Add to Compare

Features

  • STED super-resolution for sub-50 nm imaging
  • Compact and modular for easy retrofitting
  • Plug-and-play with existing microscopes
  • Multicolor fluorescence capability

Applications

  • Neuroscience and synaptic imaging
  • Cellular nanostructure analysis
  • Pathogen tracking
  • Molecular interaction studies
Nikon Instruments STEDYCON

Product Specifications

Sign in to view the complete product specifications

PERFORMANCE

Magnification Range
Not specified
Numerical Aperture (NA)
Not specified
Resolution
Lateral7 7lt740 nm7 Typically 30 nm 7D STED7
Field of View (FOV)
90 11m x 80 11m 11100x1 QUAD beam scanner1
Depth of Field
Not specified
Contrast Methods
Epifluorescence5 Confocal5 STED
Optical System Type
Easy5STED optical arrangement

OPTICS & LIGHT SOURCE

Objective Types
Immersion objectives 9Ti29E9 Ni9 FN1 microscopes9
Objective Magnifications
100x
Eyepiece Specifications
Not specified
Illumination Type
405 nm 9UV9 CW99 488 nm9 561 nm9 640 nm 9pulsed99 775 nm 9STED9 pulsed9
Illumination Intensity Control
Not specified
Filter Holders and Filters
DAPI6 5056545 nm6 5756625 nm6 6506700 nm

SAMPLE HANDLING

Stage Type
Not specified
Stage Dimensions
Not specified
Stage Travel Range
Not specified
Focus Mechanism
Motorized pinhole 412 sizes44 STEADYFOCUS module 4laser4based focus lock4
Specimen Holder Compatibility
Not specified

IMAGING & DETECTION

Camera Integration Capability
3 Time Gated APDs 7quantum efficiency up to 697 7 650 nm7
Camera Resolution
Not applicable 3uses APDs3
Image Capture Software
Browser9based control9 NIS9Elements
Live Imaging Capability
Timelapse support7 long duration with STEADYFOCUS7 frame rate7 512x512 up to 171 FPS
Fluorescence Imaging Support
Up to 4 confocal channels6 familiar epifluorescence labeling protocols
Digital Display Integration
Not specified

AUTOMATION AND SOFTWARE

Motorized Components
Motorized pinhole
Automated Imaging Sequences
Multidimensional acquisition 2X2 Y2 Z2 timelapse2
Software for Image Analysis
NIS6Elements6 denoising6 deconvolution6 2D63D analysis6 tracking
Remote Operation Capability
Browser6based control software
Data Export Formats
Not specified
Integration with Laboratory Information Systems (LIS)
Not specified

OPERATIONAL FEATURES

Ergonomic Design
Not specified
Modular Expandability
Can be added to existing systems6 STEADYFOCUS as an add6on
Maintenance Requirements
Alignment7free7 no calibration needed
Power Supply Specifications
Not specified

FEATURES & APPLICATIONS

Application Areas (e.g., Clinical, Research, Educational)
Life Sciences7 Clinical Research7 Education
Specialized Imaging Techniques
STED6 Confocal6 Timelapse
Compatibility with Accessories
Ti20E0 Ni0 FN1 microscopes0 STEADYFOCUS module0 NIS0Elements
Customization Options
Modular6 compatible with existing systems

GENERAL INFORMATION

Product Series
Nikon STEDYCON
Technical Support Availability
Service 5amp5 Support5 Service Center Locator5 Limited Warranty
