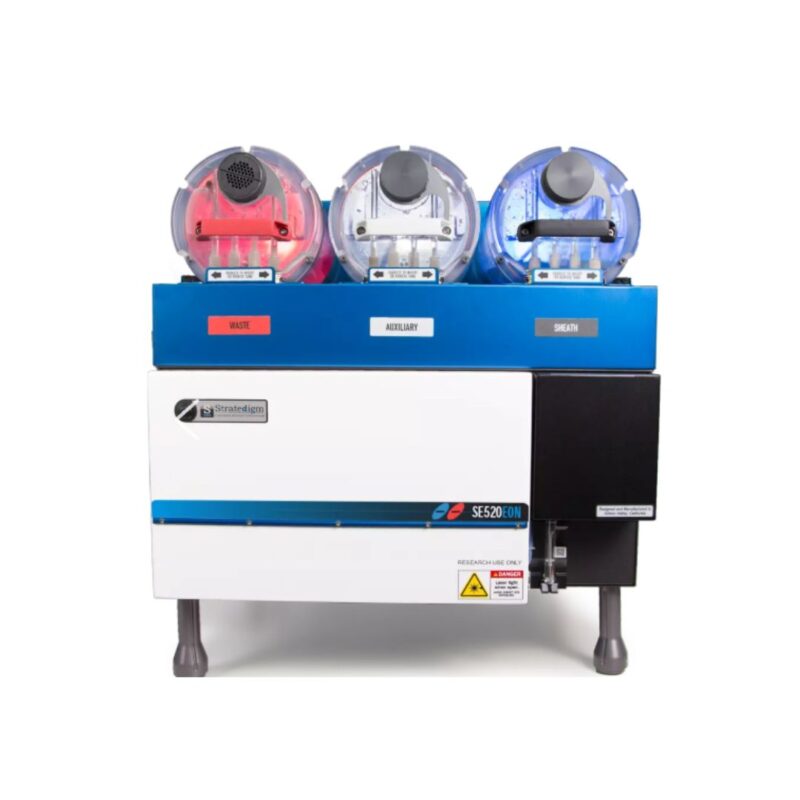

Stratedigm Inc. SE520EON Flow Cytometer

Flexible, entry-level flow cytometer designed for scalability and affordability.

Sign in to view price

$EGKMVT

Get a Quote

Add to Compare

Features

  • Up to 4 lasers and 14 parameters
  • Compact and modular footprint
  • Upgradeable to S1000EON capabilities
  • Cost-effective solution for core labs
  • Compatible with A600 HTAS autosampler

Applications

  • Basic immunophenotyping
  • Educational and training labs
  • Routine research assays
  • Startup and core facilities
  • Sample acquisition for analysis platforms
Stratedigm Inc SE520EON Flow Cytometer

Product Specifications

Sign in to view the complete product specifications

PERFORMANCE

Detection Sensitivity
4lt4100 MESF
Dynamic Range
5 decades 2acquisition22 7 decades 2analysis22 3 decades 2microparticle mode2
Event Rate
Up to 209000 events9sec
Sample Throughput
96 wells 4lt415 min 4Rapid Screening Mode4
Resolution
FSC5 5lt5500 nm5 SSC5 5lt5200 nm5 Fluorescence5 5lt52555 CV5 Time5 13 55sec
Coincidence Rate
Not specified
Flow Stability
Not specified

WAVELENGTH AND DETECTION

Number of Detectors
6 fluorescence + FSC 3amp3 SSC3 10 parameters
Fluorescence Channels
6
Light Scatter Parameters
FSC4 SSC 4width4 peak4height4 area4
Detector Type
PMTs 8fluorescence88 photodiode or optional PMT 8FSC8
Filter Sets
488 nm6 FITC6 PE6 PerCP6PE6Cy56 PE6Cy76 640 nm6 APC6 APC6Cy7
Emission Wavelength Range
Defined by filters
Excitation Wavelength(s)
488 nm8 640 nm
Compensation Capabilities
Post1acquisition1 Auto1compensation 1Uber Compensation1111
Optical Design
Patented OptiSymmetric1111 optimized optics

OPTICS AND LIGHT SOURCE

Number of Lasers
2
Laser Wavelengths
488 nm1 640 nm
Laser Power
488 nm9 150 mW9 640 nm9 100 mW9 adjustable to 309
Laser Configuration
Spatially separated
Beam Shaping Technology
Laser Trimming333 3microparticle mode3
Laser Alignment
Not specified

SAMPLE HANDLING

Sample Input Format
Single tube1 plates 1241 961 38411 cluster1Eppendorf tubes
Sample Volume Requirements
Dead6 6lt68 66L6 Min6 6lt620 66L6 A600 HTAS6 5666400 66L
Flow Cell Type
Not specified
Sample Flow Rate Control
Not specified 7A600 HTAS uses syringe pump7
Fluidics System
Integrated tray1 auto cycles1 4 L tanks1 optional automation
Sheath Fluid Requirements
4 L tank7 optional auto7fill
Sample Loading
Low insertion force1 auto1compatible
Clogging Detection & Prevention
Unclog9 Filter Clean
Cleaning & Debubbling Mechanisms
Auto startup9shutdown9 Clean9 Debubble9 Sterilize

DATA ACQUISITION AND ANALYSIS

Data Acquisition Software
CellCapTure666
Parameters Per Event
10
Compensation Tools
Uber Compensation777
Real-Time Data Analysis
Not specified
Histogram/Scatter Plot Tools
Supported
Gating Strategies
Supported5 auto positive5negative gates
Multi Parameter Analysis
Supported
Data Export Formats
FCS

AUTOMATION AND SOFTWARE

Automated Startup & Shutdown
Supported
Remote Operation Capabilities
Not specified
Scheduling & Batch Processing
Supported
API / LIMS Integration
Universal API8 LIMS not detailed
Advanced Analysis Software
Custom parameters9 overlays9 calc sheets
Quality Control Features
Auto diagnostics5 usage tracking
Compliance Tools
Research Use Only

OPERATIONAL FEATURES

User Interface
Intuitive 2CellCapTure2
Ease of Use
High9 simplified training9 auto features
Maintenance Requirements
Auto clean3decontam33 usage monitoring
Durability & Reliability
High5 based on S1000 tech5 ceramic syringe pump
Operating Conditions
1533330 33C 36033386 33F3
Noise & Vibration Levels
A600 HTAS1 1lt165 dBA1 SE520EON1 Not specified
Power Supply Requirements
11001150230 VAC0 5000060 Hz
Dimensions and Weight
2115111W x 21111D x 24111H1 1lt170 lbs 135 kg1
Cooling System
Not specified

FEATURES AND APPLICATIONS

Specialized Assays
Yes1 preclinical1 agri1 microparticle analysis
Sorting Capability
Not supported
Cell Sorting Modes
Not applicable
Rare Event Detection
Yes8 high sensitivity8 overinject mode
High-Throughput Screening Compatibility
Yes5 A600 HTAS5 rapid mode supported
Clinical vs. Research Use
Research Only
Multiplexing Capability
6 fluorescence channels
Customizable Panels
User2changeable filters 2within fixed laser setup2

GENERAL INFORMATION

Product Type
Benchtop flow cytometer 3 analyzer
Documentation and Support
Available3 includes Anti3Obsolescence Guarantee
Upgrade Options
Optional FSC PMT2 A600 HTAS2 other modules
Regulatory Certifications
Not specified
Connectivity
Full automation suite compatibility
Compatibility
CellCapTure1 A600 HTAS1 A640 CPM1 A710 HTH1 A800 CI
Warranty & Service Agreements
28year warranty8 Anti8Obsolescence Guarantee
