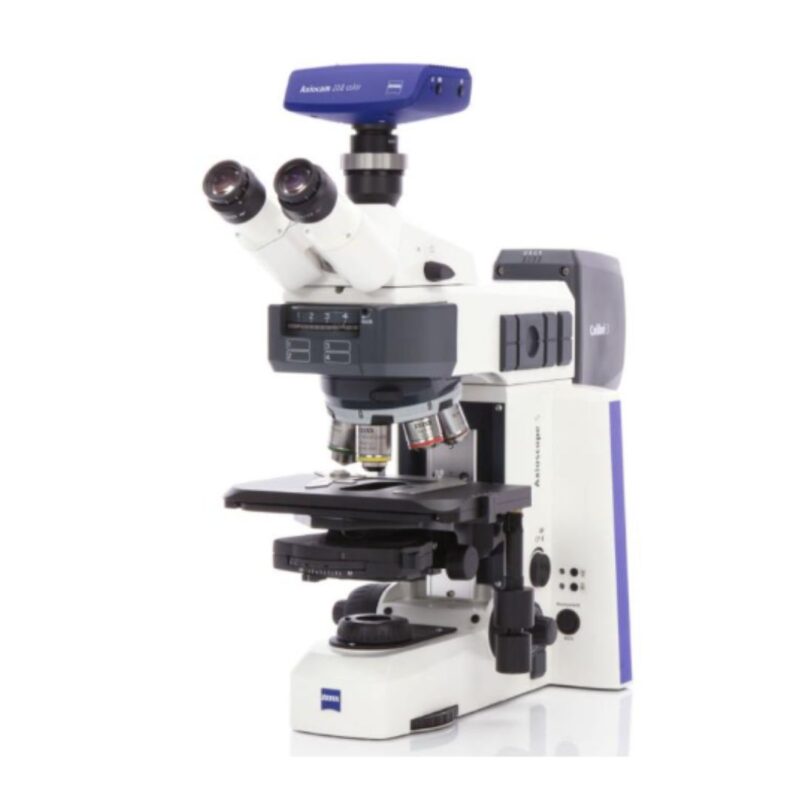

Zeiss AxioImager2Pol​

High-resolution polarization microscope for minerals, crystals and anisotropic material investigations.

Sign in to view price

$ER6GI

Get a Quote

Add to Compare

Features

  • High-stability upright stand
  • Advanced polarization contrast optics
  • Coded components and motorized focus
  • Ergonomic operating controls
  • Optional camera integration

Applications

  • Mineralogy and petrology thin sections
  • Optical anisotropy characterization
  • Geological education
  • Polymer birefringence studies
  • Liquid crystal research
Zeiss AxioImager2Pol​

Product Specifications

Sign in to view the complete product specifications

PERFORMANCE

Magnification Range
10x6 50x objectives6 full range not specified
Numerical Aperture (NA)
09259990995 9specific objectives only9
Resolution
Not specified
Field of View (FOV)
Not specified
Depth of Field
Not specified
Contrast Methods
Brightfield5 Darkfield5 Polarization 5transmitted5reflected55 555plate
Optical System Type
Upright Polarized Light Microscope for Research

OPTICS & LIGHT SOURCE

Objective Types
EC Plan4NEOFLUAR Pol4 EC Epiplan4NEOFLUAR Pol4 EC Epiplan4APOCHROMAT Pol
Objective Magnifications
10x8 50x
Eyepiece Specifications
Not specified
Illumination Type
Transmitted and reflected light
Illumination Intensity Control
Auto settings via contrast3light manager
Filter Holders and Filters
000plate0 0004 plate0 variable compensators

SAMPLE HANDLING

Stage Type
Rotary ball5bearing stage5 36055 scale5 05155 vernier
Stage Dimensions
Not specified
Stage Travel Range
Not specified
Focus Mechanism
Manual or motorized Z0drive with ACR
Specimen Holder Compatibility
Not specified 0likely standard0polished sections0

IMAGING & DETECTION

Camera Integration Capability
Yes 2image and video capture2
Camera Resolution
Not specified
Image Capture Software
ZEISS ZEN core
Live Imaging Capability
Yes
Fluorescence Imaging Support
Not specified
Digital Display Integration
Yes 8touchscreen control8

AUTOMATION AND SOFTWARE

Motorized Components
Coded0 partly or fully motorized versions available
Automated Imaging Sequences
ACR1 saved1retrievable settings1 no full sequence automation detailed
Software for Image Analysis
ZEN core3 ZEN analyzer 3grain size3 particle analysis3 etc33
Remote Operation Capability
Yes 1control panel independent of stand1
Data Export Formats
Not specified
Integration with Laboratory Information Systems (LIS)
Not specified

OPERATIONAL FEATURES

Ergonomic Design
Yes 7ergonomic focus controls7
Modular Expandability
Yes 00Open Microscope System00
Maintenance Requirements
Not specified
Power Supply Specifications
Not specified

FEATURES & APPLICATIONS

Application Areas (e.g., Clinical, Research, Educational)
Geology3 Minerals3 Thermomicroscopy3 Energy Materials3 Additive Mfg33 etc3
Specialized Imaging Techniques
Polarized light5 555plate5 Orthoscopy5 Conoscopy
Compatibility with Accessories
Compensators4 Pol phototube4 Bertrand optics4 thermomicroscopy tools
Customization Options
Coded1 motorized versions1 modular components

GENERAL INFORMATION

Product Series
ZEISS Axio Imager 2
Technical Support Availability
Available 9Service9 Upgrade9 Training options9
